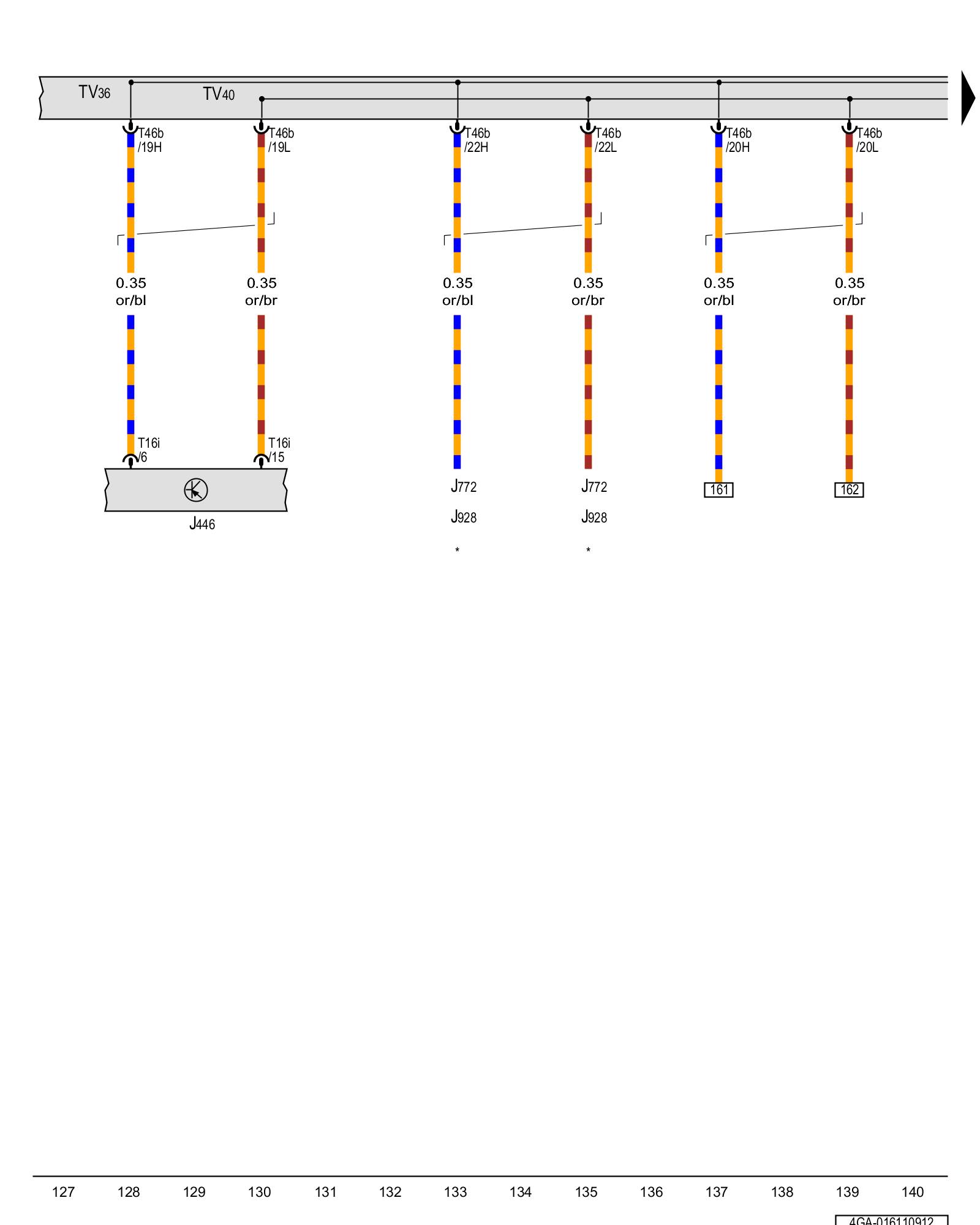

Diagram 16/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Instrument cluster CAN bus high wire junction, Instrument cluster CAN bus low wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J446 - Parking aid control module Locations Parking Aid Systems

J772 - Rearview camera system control module Rear View Camera Overview

J928 - Peripheral camera control module

T16i - 16-pin connector Locations

T46b - 46-pin connector

TV36 - Instrument cluster CAN bus high wire junction, on the relay and fuse carrier in the luggage compartment, right

TV40 - Instrument cluster CAN bus low wire junction

* - Depending on equipment
