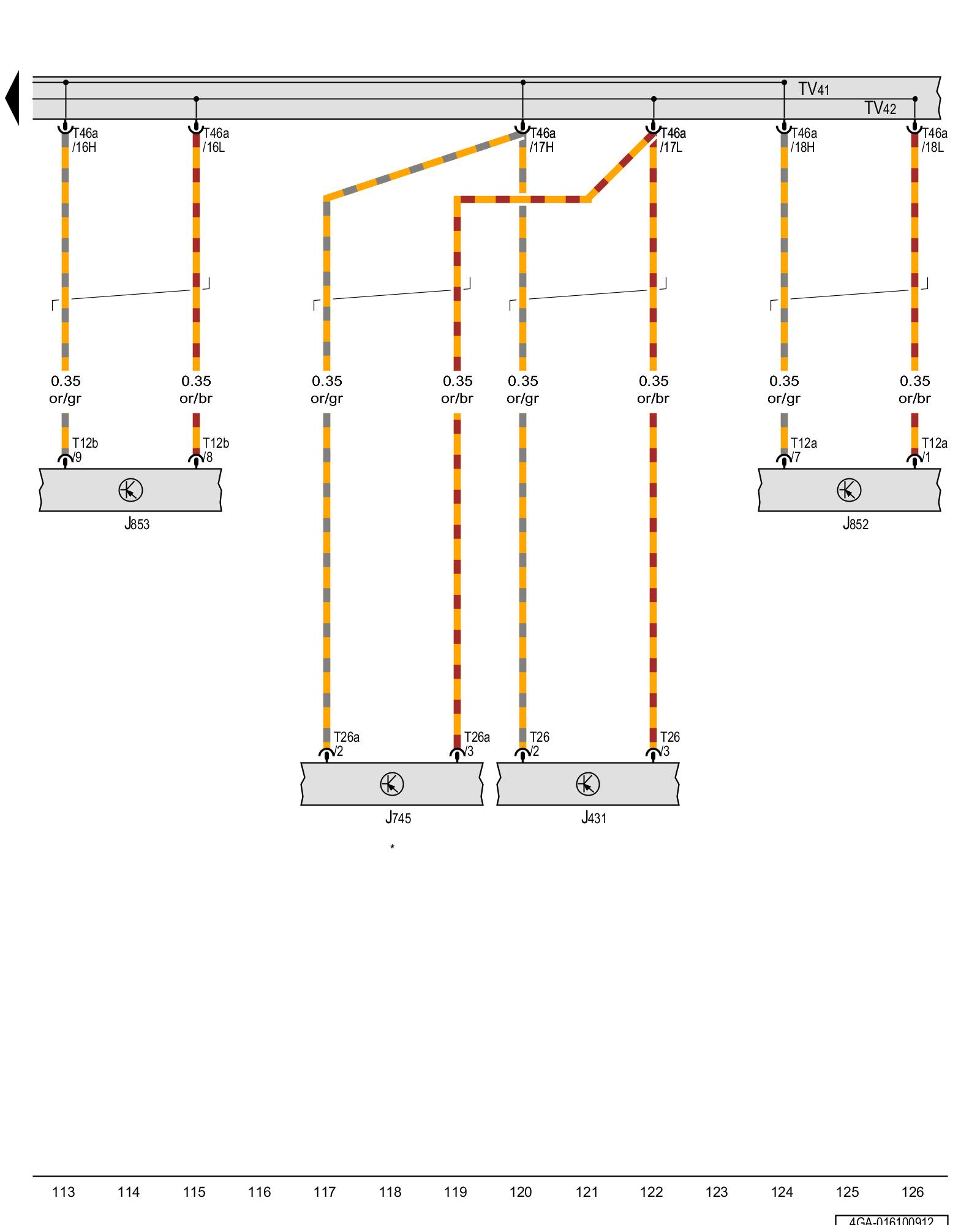

Diagram 16/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Extended CAN bus high wire junction, Extended CAN bus low wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J431 - Headlamp range control module Locations

J745 - Cornering lamp and headlamp range control module

J852 - Camera control module

J853 - Night vision system control module Locations

T12a - 12-pin connector

T12b - 12-pin connector Infrared Camera Control Module -J853-

T26 - 26-pin connector

T26a - 26-pin connector Locations

T46a - 46-pin connector Locations

TV41 - Extended CAN bus high wire junction, in the left A-pillar connector station

TV42 - Extended CAN bus low wire junction

* - Only for vehicles with dynamic cornering lamp
