Data Link Connector: Locations







Overview of Control Modules

16-Pin Connector -T16- Diagnostic Connector

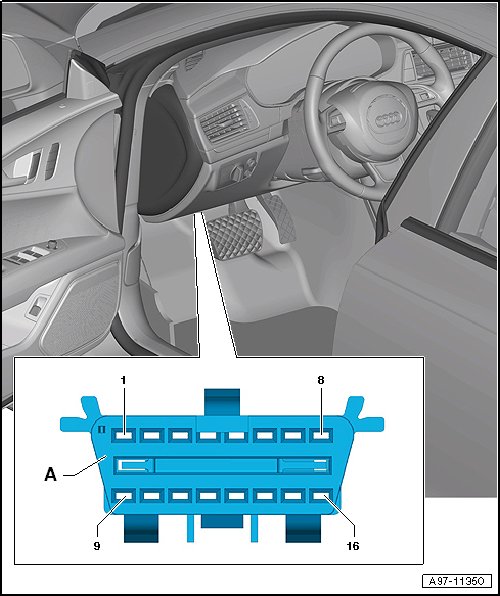

Component Location, left-hand
drive:
In driver's left stowage compartment





A - 16-Pin Connector -T16- , black
