Garage Door Opener Control Module

Garage Door Opener Control Module

Removing






- Remove the lock carrier cover.

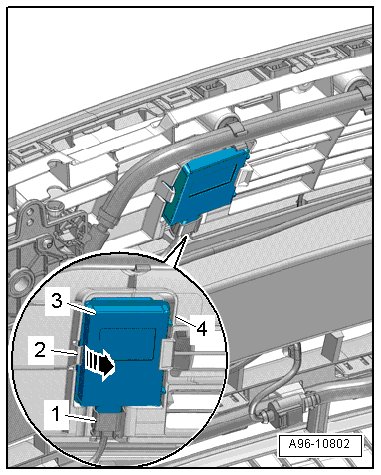

- Release the tab - 2 - and remove the control module - 3 - from the mount - 4 - - arrow -.

- Disconnect the electrical connector - 1 -.

Installing

Install in reverse order of removal. Note the following:

- Install the lock carrier cover.
