Headlamp Control Module: Locations







Overview of Control Modules

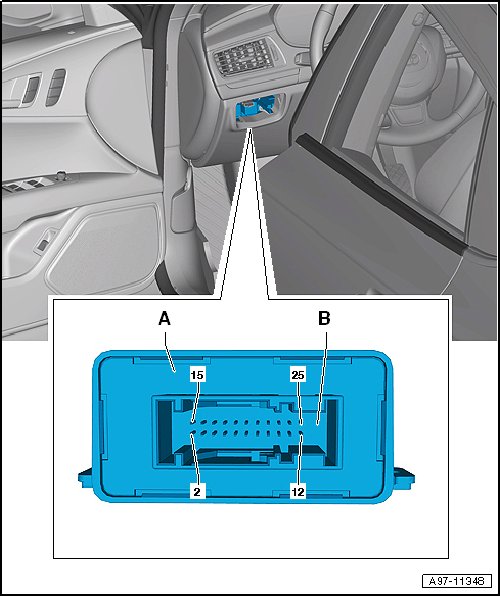

Headlamp Range Control Module -J431-


Component Location, left-hand
drive:
Behind driver's left stowage compartment





A - Headlamp Range Control Module -J431-

B - 26-Pin Connector -T26a- , black
