Automatic Headlamp Vertical Aim (Range) Control Overview

Automatic Headlamp Vertical Aim (Range) Control Overview

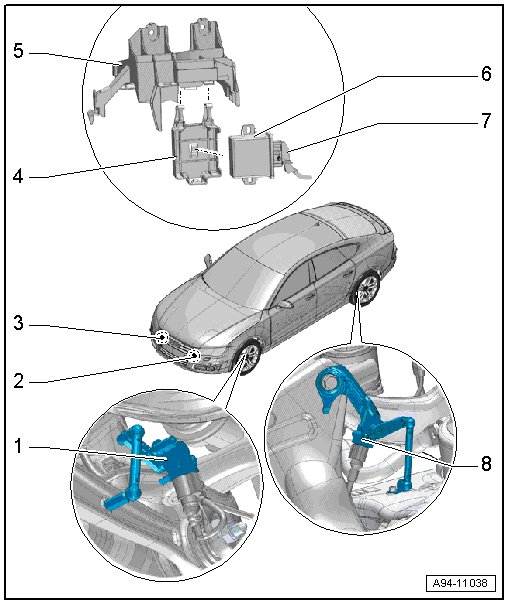

1 Left Front Level Control System Sensor (G78)

• Component location: on the control arm in the front.

2 Left Headlamp Beam Adjustment Motor (V48)

• Only HID headlamps

• Removing and installing, refer to => [ Headlamp Beam Adjustment Motor (V48)/(V49) ] Headlamp Beam Adjustment Motor (V48)/(V49).

3 Right Headlamp Beam Adjustment Motor (V49)

• Only HID headlamps

• Removing and installing, refer to => [ Headlamp Beam Adjustment Motor (V48)/(V49) ] Headlamp Beam Adjustment Motor (V48)/(V49).

4 Mount

• For the Headlamp range control module (J431)

• Removing and installing, refer to => [ Relay Panel Mount, Under Instrument Panel, Left Side, Vehicle Electrical System Control Module ] Relay Panel Mount, Under Instrument Panel, Left Side, Vehicle Electrical System Control Module.

5 Mount

• For the Vehicle electrical system control module (J519) and the relay panel under the instrument panel on the left side.

• Overview, refer to => [ Instrument Panel Relay Carrier and Fuse Panel and A-Pillar Overview ] Instrument Panel Relay Carrier and Fuse Panel and A-Pillar Overview.

6 Headlamp Range Control Module (J431)

• Removing and installing, refer to => [ Cornering Lamp and Headlamp Range Control Module ] Cornering Lamp and Headlamp Range Control Module.

7 Electrical Connector

8 Left Rear Level Control System Sensor (G76)

• Component location: on the rear control arm.
