Map/Reading Light Bulbs, Basis A/C System

Map/Reading Light Bulbs, Basis A/C System

Removing






- Remove the front interior lamp/reading lamp: with an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, Without Eyeglass Compartment ] Interior Lamp/Reading Lamp, Without Eyeglass Compartment, with an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, With Eyeglass Compartment ] Interior Lamp/Reading Lamp, With Eyeglass Compartment.

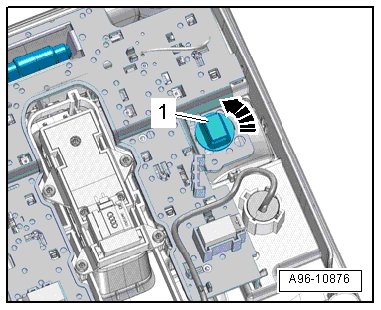

- Turn the bulb socket - 1 - counter-clockwise - arrow - and remove it from the interior lamp/reading lamp.

- Pull the bulb out of the socket.

Installing

Install in reverse order of removal. Note the following:

- Install the front interior lamp/reading lamp: with an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, Without Eyeglass Compartment ] Interior Lamp/Reading Lamp, Without Eyeglass Compartment, with an eyeglass compartment, refer to => [ Interior Lamp/Reading Lamp, With Eyeglass Compartment ] Interior Lamp/Reading Lamp, With Eyeglass Compartment.
