Front Display Open/Close and Display Unit Button Switch Unit (E462)/(E506)

Front Display Open/Close and Display Unit Button Switch Unit (E462)/(E506)

Removing






- Remove the instrument vent in the center.

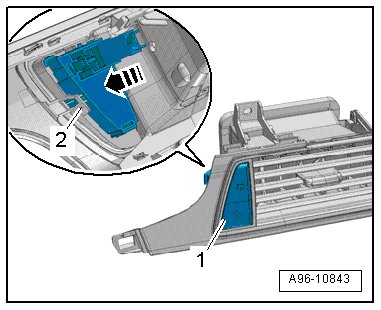

- Remove the switch unit - 1 - from the mount - 2 - - arrow -.

- Remove the switch unit.

Installing

Install in reverse order of removal. Note the following:

- Install the center instrument vent.
