A/C System Control Components In-Cabin
Component Locations: Climate / Climatronic Systems
A/C System Control Components In-Cabin
A/C System Control Components In-Cabin, driver side
2 - Position sensor in left side vent -G628-
• Behind dash panel vent
3 - Vehicle electrical system control module -J519-

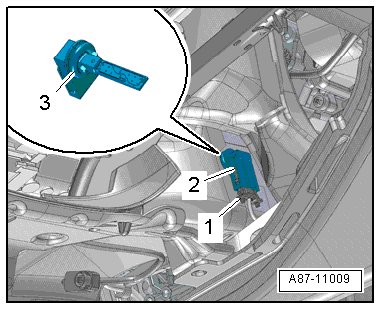

4 - Left vent temperature sensor -G150- => See Image Below.
8 - Position sensor in left center vent -G626-
• Behind dash panel vent
10 - Infrared temperature and sunlight penetration sensor
13 - Fresh air blower -V2- with Fresh air blower control module -J126- => [ Air intake box ] See Image Below.

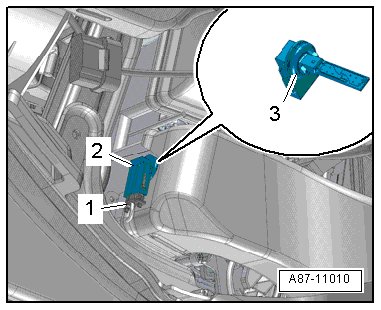

15 - Left footwell vent temperature sensor -G261- => See Image Below.

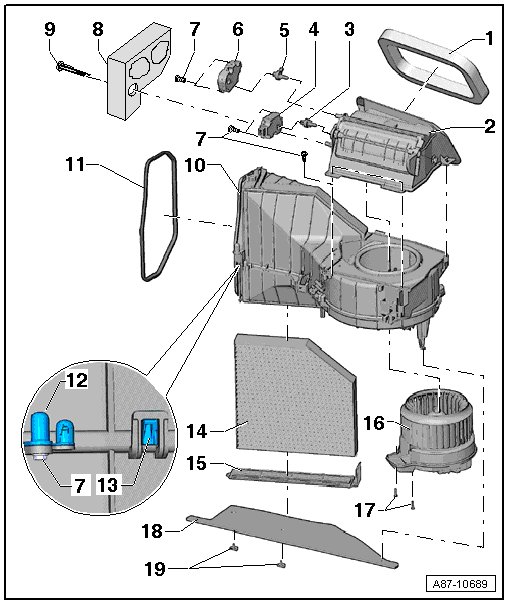

Air intake box
4 - Recirculation door motor -V113-
6 - Airflow door motor -V71-
16 - Fresh air blower -V2- with Fresh air blower control module -J126-
Left vent temperature sensor -G150-
Left footwell vent temperature sensor -G261-
A/C System Control Components In-Cabin, right front
3 - Position sensor in right side vent -G629-
• Located in right side vent
4 - Position sensor in right center vent -G627-
• Located in right centre dash panel vent
5 - Humidity sensor -G355-
• Located at rear view mirror

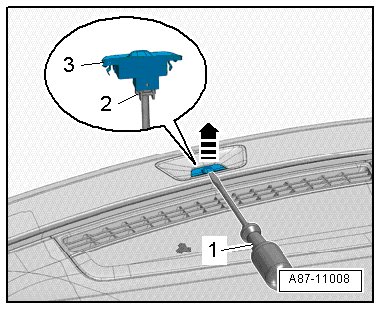

6 - Sunlight photo sensor -G107- => See Image Below.

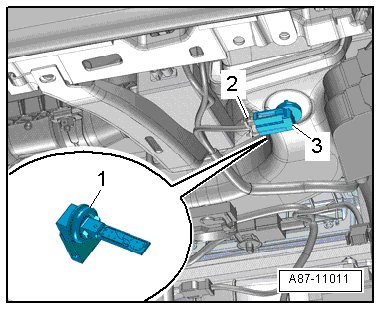

9 - Right vent temperature sensor -G151- => See Image Below.

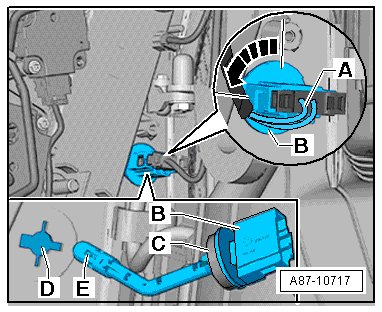

10 - Evaporator vent temperature sensor -G263- => See Image Below.
15 - Right footwell vent temperature sensor -G262- => See Image Below.
Sunlight photo sensor -G107-
Right vent temperature sensor -G151-
Evaporator vent temperature sensor -G263-
Right footwell vent temperature sensor -G262-
• image shown with glove box removed
A/C System Control Components In-Cabin, rear left

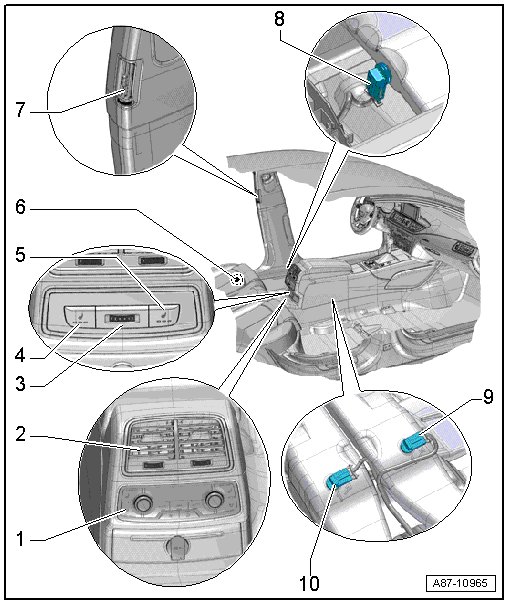

1 - Rear A/C display control head -E265-
2 - Position sensor in left rear upper body vent -G630- / Position sensor in right rear upper body vent -G631-
• In center console
3 - Rear temperature selection potentiometer -G538-
• If equipped
4 - Left rear heated seat regulating switch -E128-
5 - Left rear heated seat regulating switch -E128-

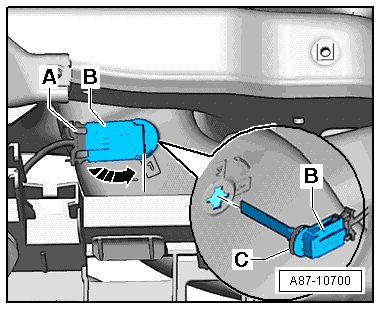

8 - Left rear footwell vent temperature sensor -G637-
9 - Right rear upper body vent temperature sensor -G636-
10 - Left rear upper body vent temperature sensor -G635-
• In air duct for rear vent
A/C System Control Components In-Cabin, rear right

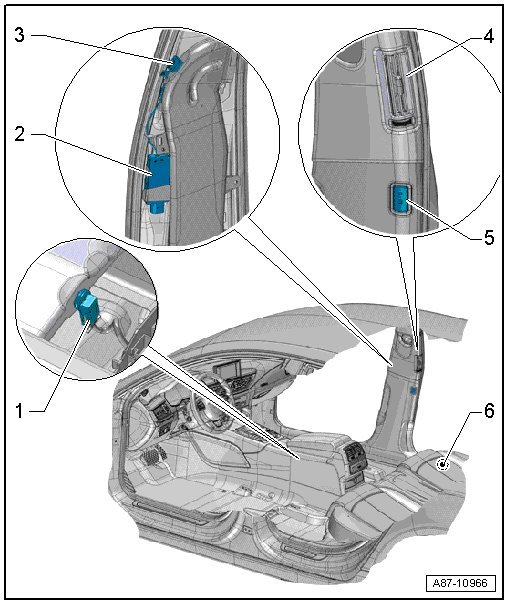

1 - Right rear footwell vent temperature sensor -G638-
2 - Air ionization system control module -J897-
• If equipped
5 - Air ionization system button -E677-
