Vent Air Guide

Vent Air Guide

Removal






- Remove the rear cover for the center console.

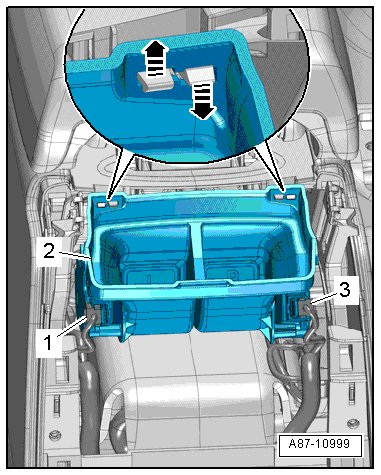

- Release the retaining tabs - arrows -.

- Remove the air guide - 2 - from the rear air guide channel.

- If present, disconnect the electrical harness connectors - 1, 3 -.

- If the air guide is replaced, the control motors must be removed in the case of the Comfort version: Left rear upper body vent motor (V315)=> [ Left Rear Upper Body Vent Motor (V315) ] Left Rear Upper Body Vent Motor (V315), right rear upper body vent motor (V316)=> [ Right Rear Upper Body Vent Motor (V316) ] Right Rear Upper Body Vent Motor (V316).

Installation






Installation is done is reverse order, observe the following:

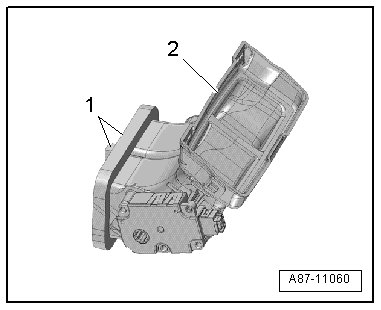

- Replace damaged or defective foam seals - 1 - on the air guide - 2 -.

- Install the rear cover for the center console.
