Center Instrument Panel Vent Air Guide







Center Instrument Panel Vent Air Guide

Removal






- Remove the instrument panel.

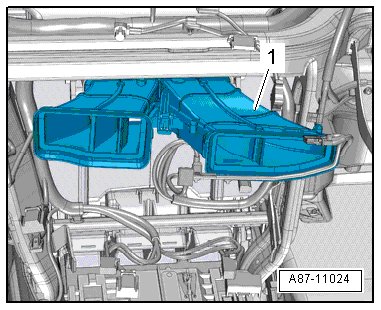

- Remove the air guide of the center instrument panel vent - 1 -.

Installation

Installation is done in reverse order, observe the following:

- Ensure that the guides of the air guide are correctly installed in the mounts.

- Install the instrument panel.
