Basic Version - Doors, Separating Walls, and Control Lever of Air Distributor Housing
Basic Version - Doors, Separating Walls, and Control Lever of Air Distributor Housing
Risk of damage.
• The air distributor housing of the A/C unit must not be disassembled. A disassembled air distributor housing must be replaced.
• The air distributor housing is only displayed in a disassembled state to show the installed doors.
• Various shafts of temperature doors are connected to one another via a connecting rod, actuator lever, and cam plate. They are then jointly actuated by one control motor.
• Only components from the repair kit can be replaced. Repair kit, refer to Electronic parts catalog.

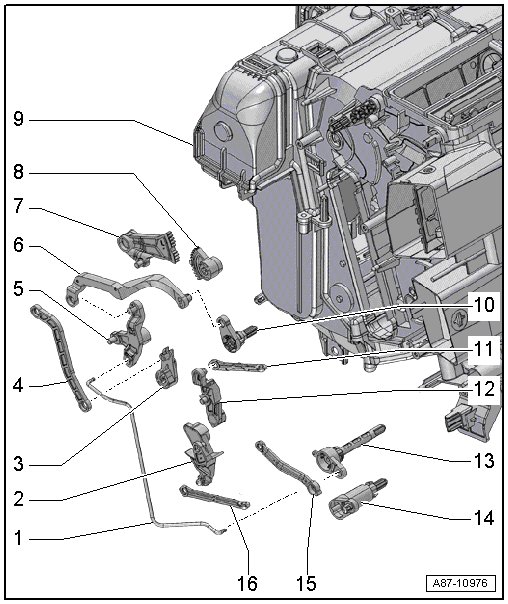

Component Group 1 - Left Air Distributor Housing, Control Lever, Cam Plate
• Only components from the repair kit can be replaced. Repair kit, refer to Electronic Parts Catalog (ETKA).
1 Connecting Rod
• For controlling the door for the center instrument panel vent and the rear vent door.
2 Control Lever
• For actuating the doors for the front and rear footwell vents.
3 Control Lever
• For actuating the warm air door.
4 Connecting Element
• For controlling the warm air and cold air.
5 Connecting Element
• For controlling the door for the center instrument panel vent and the rear vent door
6 Connecting Element
• For controlling the door for the center instrument panel vent.
7 Connecting Element
• For controlling the door for indirect ventilation.
8 Control Lever
• For actuating the door for indirect ventilation.
9 Air Distributor Housing
• Different versions. Refer to Electronic Parts Catalog (ETKA).
• The air distributor housing of the A/C unit must not be disassembled.
10 Control Lever
• For actuating the door for the center instrument panel vent
11 Connecting Element
• For controlling the door for the side instrument panel vent.
12 Control Lever
• For actuating the connecting element for the door for the side instrument panel vent.
13 Control Lever
• For actuating the rear vent door.
14 Control Lever
• For actuating the rear footwell vent door.
15 Connecting Element
• For controlling the rear footwell vent door.
16 Connecting Element
• For controlling the front footwell vent door.

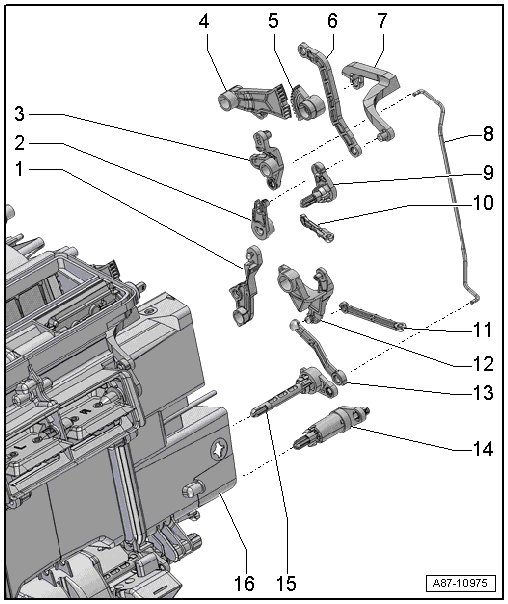

Component Group 1 - Right Air Distributor Housing, Control Lever, Cam Plate
• Only components from the repair kit can be replaced. Repair kit. Refer to Electronic Parts Catalog (ETKA).
1 Control Lever
• For actuating the connecting element for the door for the side instrument panel vent.
2 Control Lever
• For actuating the warm air door
3 Connecting Element
• For controlling the door for the center instrument panel vent and the rear vent door.
4 Connecting Element
• For controlling the door for indirect ventilation.
5 Control Lever
• For actuating the door for indirect ventilation.
6 Connecting Element
• For controlling the warm air and cold air.
7 Connecting Element
• For controlling the door for the center instrument panel vent.
8 Connecting Rod
• For controlling the door for the center instrument panel vent and the rear vent door.
9 Control Lever
• For actuating the door for the center instrument panel vent.
10 Connecting Element
• For controlling the door for the side instrument panel vent.
11 Connecting Element
• For controlling the front footwell vent door.
12 Control Lever
• For actuating the doors for the front and rear footwell vents.
13 Connecting Element
• For controlling the rear footwell vent door.
14 Control Lever
• For actuating the rear footwell vent door.
15 Control Lever
• For actuating the rear vent door.
16 Air Distributor Housing
• Different versions. Refer to Electronic Parts Catalog (ETKA).
• The air distributor housing of the A/C unit must not be disassembled.

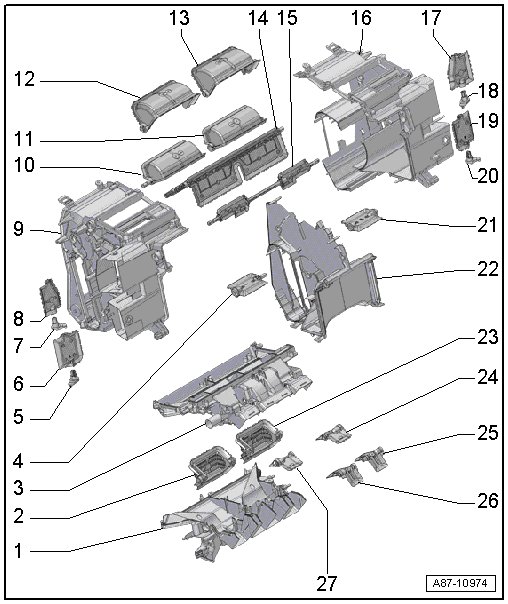

Component Group 2 - Air Distributor Housing, Doors, Separating Walls
• The air distributor housing of the A/C unit must not be disassembled. A disassembled air distributor housing must be replaced.
• The air distributor housing is only displayed in a disassembled state to show the installed doors.
1 Air Distributor Housing Lower Section
• For the rear footwell vent and center console vent.
2 Left Temperature Door
• For the rear footwell vent and center console vent.
3 Air Distributor Housing Upper Section
• For the rear footwell vent and center console vent.
4 Left Door For The Center Instrument Panel Vent
5 Control Lever
• For actuating the front footwell vent door.
6 Left Door For The Front Footwell Vent
7 Control Lever
• For actuating the door for the side instrument panel vent.
8 Left Door For The Side Instrument Panel Vent
9 Left Air Distributor Housing
10 Left Warm Air Door
• From the heater core.
11 Right Warm Air Door
• From the heater core.
12 Left Cold Air Door
• From the evaporator.
13 Right Cold Air Door
• From the evaporator.
14 Defroster Doors
• To the windshield.
15 Doors For Indirect Ventilation
• To the upper instrument panel.
16 Right Air Distributor Housing
17 Right Door For The Side Instrument Panel Vent
18 Control Lever
• For actuating the door for the side instrument panel vent.
19 Right Door For The Front Footwell Vent
20 Control Lever
• For actuating the front footwell vent door.
21 Right Door For The Center Instrument Panel Vent
22 Center Air Distributor Housing
• For directing the air to the left and right vents.
23 Right Temperature Door
• For the rear footwell vent and center console vent
24 Right Door For The Rear Footwell Vent
25 Right Door For The Rear Air Guide Channel
• For the center console vent.
26 Left Door For The Rear Air Guide Channel
• For the center console vent.
27 Left Door For The Rear Footwell Vent
