Oil Pan: Specifications






Fastener Tightening Specifications

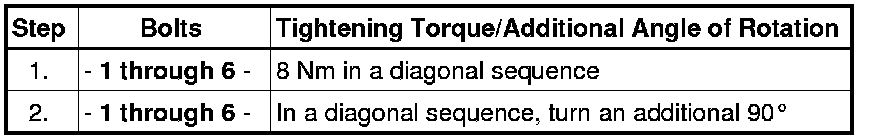

Lower Oil Pan, Tightening Specifications and Sequence

• Replace bolts which have been tightened to an additional torque.

- Tighten bolts in 2 stages as follows:











Upper Oil Pan, Tightening Specifications and Sequence

• Replace bolts which have been tightened to an additional torque.

- Tighten bolts in 2 stages as follows:
