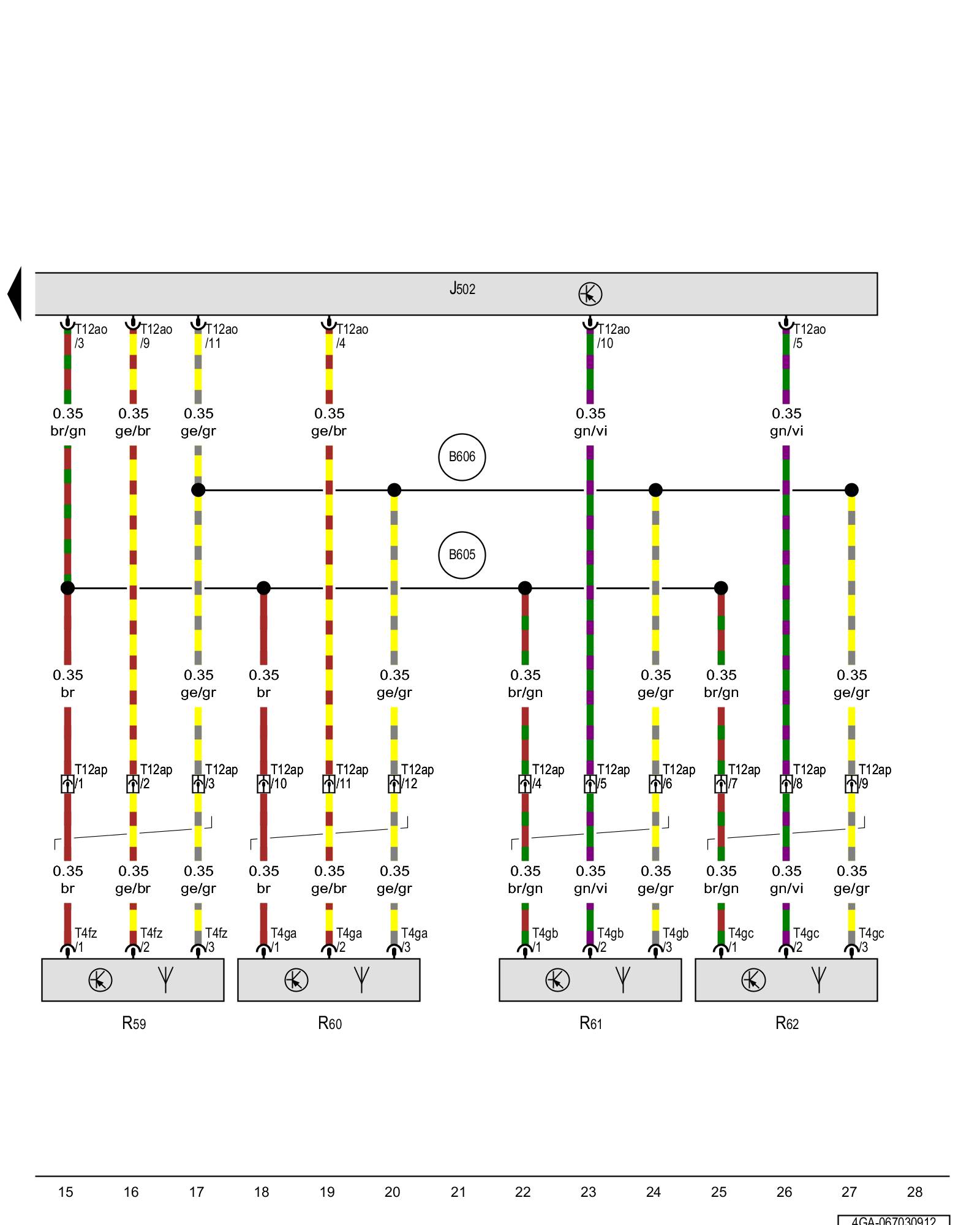

Diagram 67/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Tire pressure monitoring control module, Left front tire pressure monitoring antenna, Left rear tire pressure monitoring antenna





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J502 - Tire pressure monitoring control module

R59 - Left front tire pressure monitoring antenna

R60 - Right front tire pressure monitoring antenna

R61 - Left rear tire pressure monitoring antenna

R62 - Right rear tire pressure monitoring antenna

T4fz - 4-pin connector

T4ga - 4-pin connector

T4gb - 4-pin connector

T4gc - 4-pin connector

T12ao - 12-pin connector

T12ap - 12-pin connector, under the center console

(B605) - Connection 1 (in interior wiring harness)

(B606) - Connection 2 (in interior wiring harness)
