Diagram 11/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

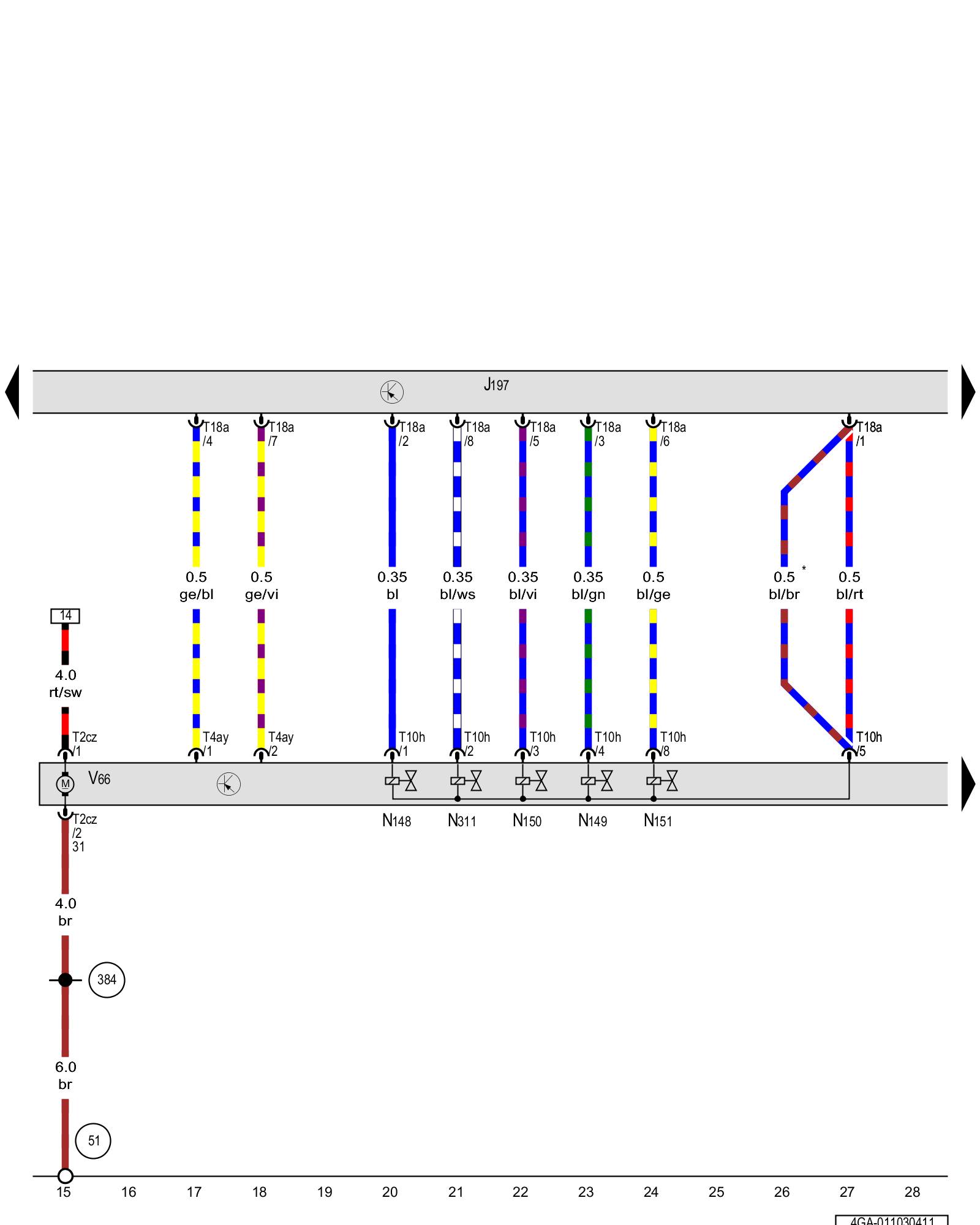

Level control system control module, Left front suspension strut valve, Left rear suspension strut valve, Level control system compressor motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J197 - Level control system control module Locations Locations

N148 - Left front suspension strut valve

N149 - Right front suspension strut valve

N150 - Left rear suspension strut valve

N151 - Right rear suspension strut valve

N311 - Level control accumulator valve

T2cz - Double connector

T4ay - 4-pin connector

T10h - 10-pin connector

T18a - 18-pin connector Locations

V66 - Level control system compressor motor

(51) - Ground connection in luggage compartment, right [1][2]Ground Locations

(384) - Ground connection 19 (in main wiring harness)

* - From June 2011

Previous Diagram 11/2 (Tracks 1-14)

Next Diagram 11/4 (Tracks 29-42)
