Diagram 1/43 (Tracks 575-588)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

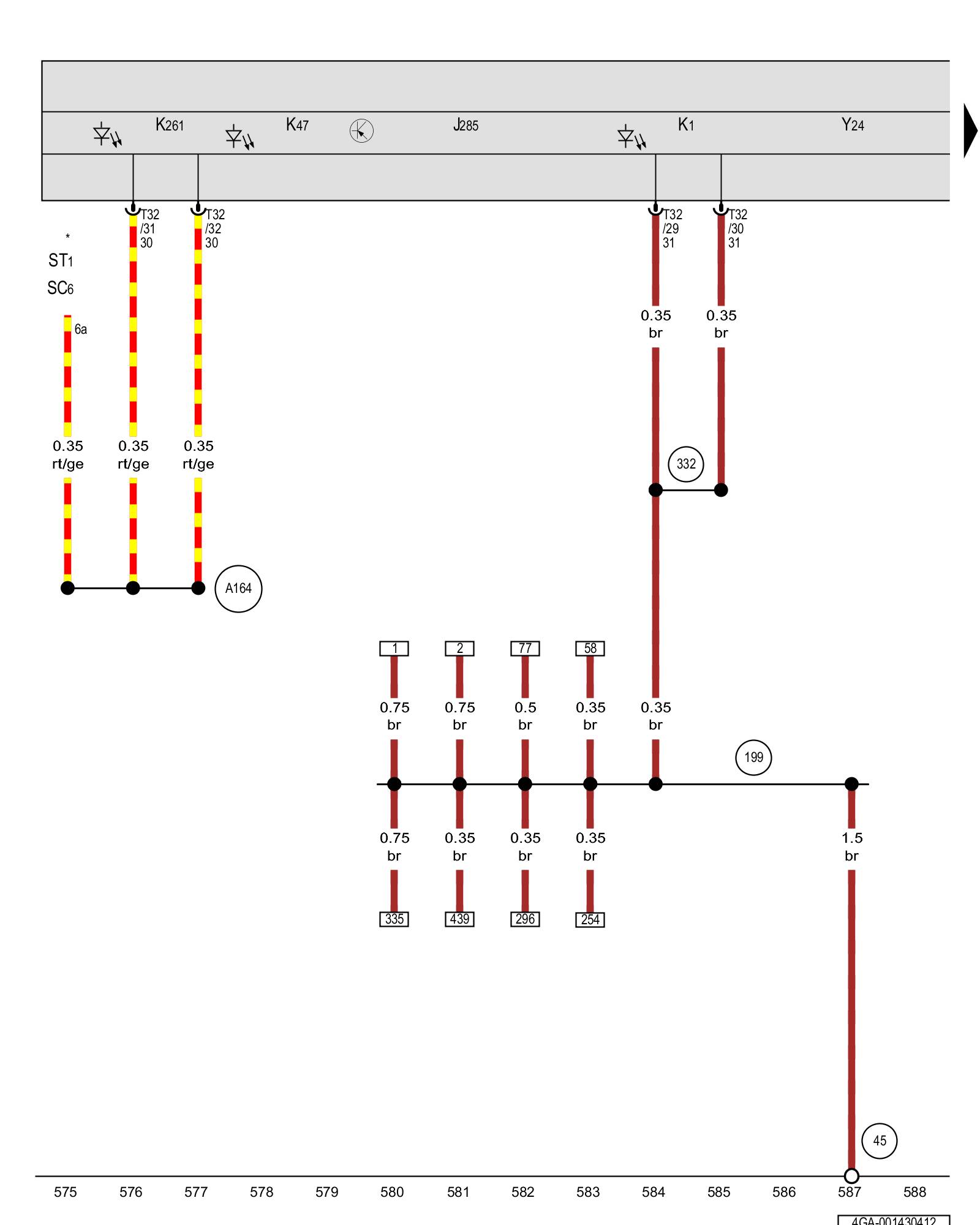

Instrument cluster control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module Locations

K1 - High beam indicator lamp

K47 - ABS indicator lamp

K261 - Left turn signal indicator lamp

ST1 - Fuse panel 1

SC6 - Fuse 6 (on fuse panel C) Overview Of Fuses

T32 - 32-pin connector

Y24 - Display unit in instrument cluster

(45) - Ground connection behind instrument panel, center [1][2]Ground Locations

(199) - Ground connection 3 (in instrument panel wiring harness)

(332) - Ground connection 4 (in instrument panel wiring harness)

(A164) - Positive connection 2 (30a) (in instrument panel wiring harness)

* - Refer to applicable wiring diagram for fuse positions
