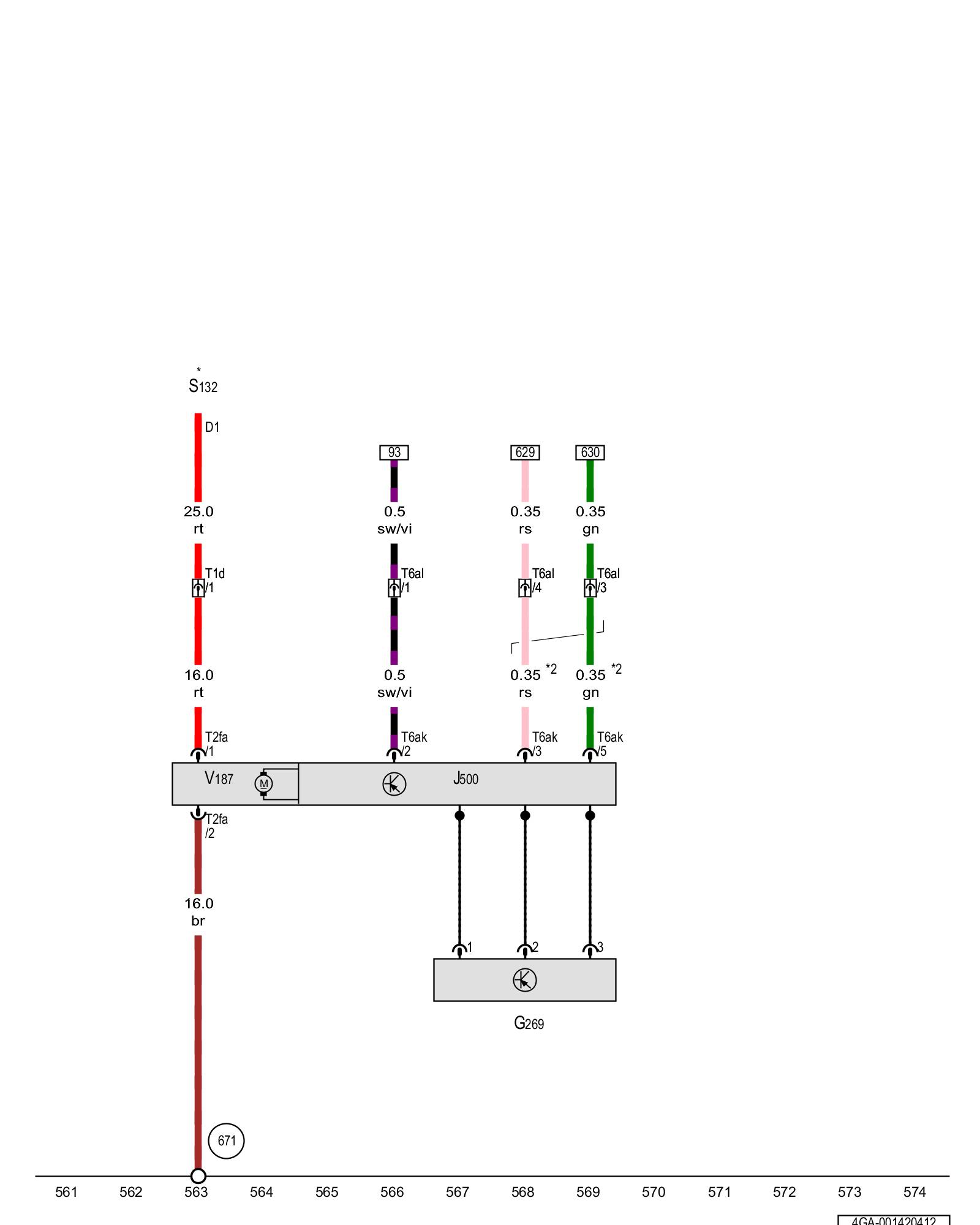

Diagram 1/42 (Tracks 561-574)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power steering control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G269 - Steering torque sensor Locations

J500 - Power steering control module Locations Locations

S132 - Safety fuse 2 Fuses On Main Fuse Carrier

T1d - Single connector, on the left front of the vehicle floor

T2fa - Double connector Power Steering Control Module -J500-

T6ak - 6-pin connector Power Steering Control Module -J500-

T6al - 6-pin connector, under the left front wheel housing cover

V187 - Electromechanical power steering motor Locations

(671) - Ground connection 1 on left front longitudinal member

* - Refer to applicable wiring diagram for fuse positions

*2 - Data bus wire (FlexRay bus)
