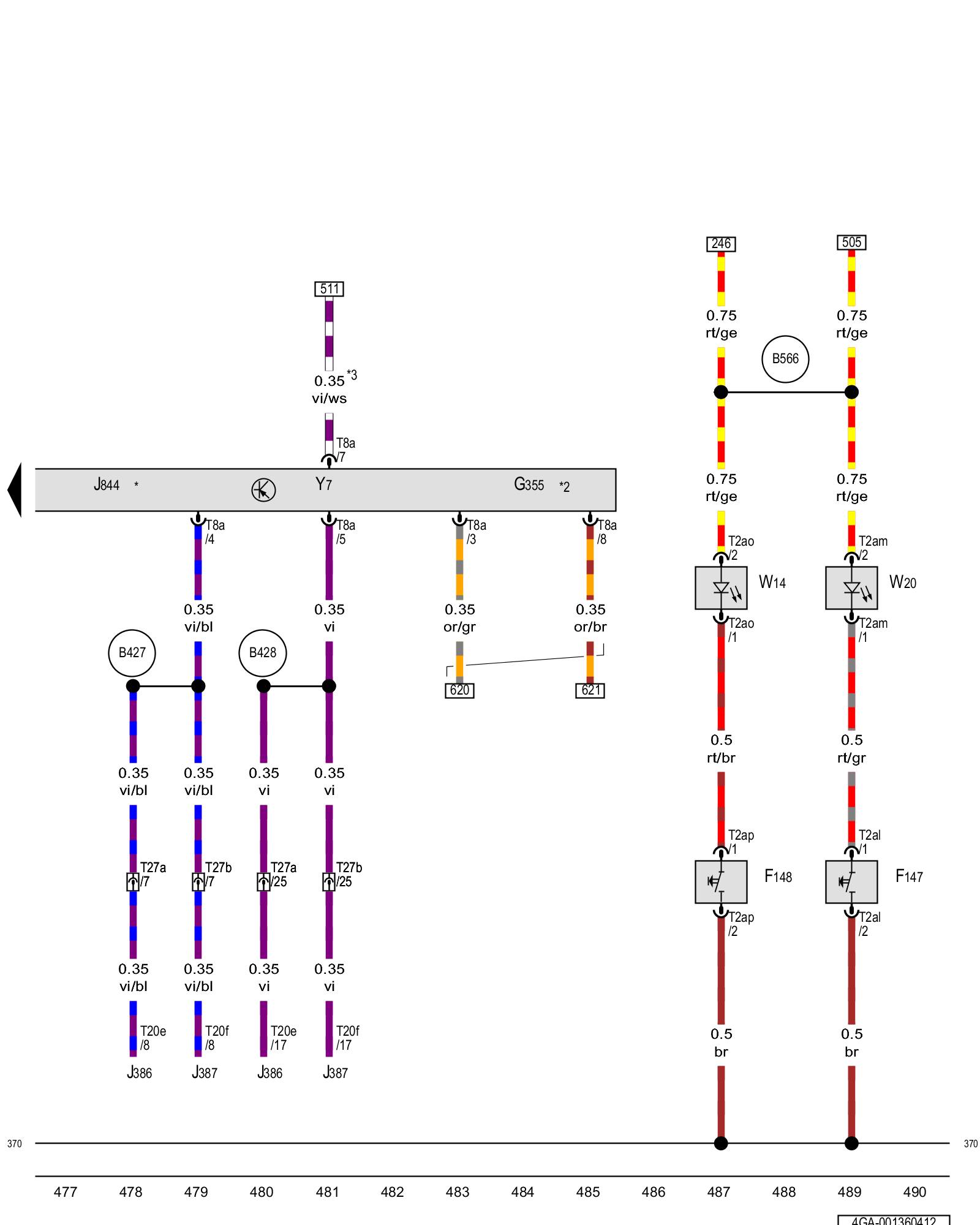

Diagram 1/36 (Tracks 477-490)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Humidity sensor, Automatic high beam assist control module, Front passenger vanity mirror lamp, Driver vanity mirror lamp, Automatic dimming interior rearview mirror





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F147 - Driver vanity mirror lamp contact switch

F148 - Front passenger vanity mirror lamp contact switch

G355 - Humidity sensor Locations A/C System Control Components In-Cabin

J386 - Driver door control module

J387 - Front passenger door control module Locations

J844 - Automatic high beam assist control module Component Locations

T2al - Double connector

T2am - Double connector

T2ao - Double connector

T2ap - Double connector

T8a - 8-pin connector

T20e - 20-pin connector Driver's Door Control Module -J386-

T20f - 20-pin connector Front Passenger's Door Control Module -J387-

T27a - 27-pin connector, on the left A-pillar

T27b - 27-pin connector, on the right A-pillar

W14 - Front passenger vanity mirror lamp

W20 - Driver vanity mirror lamp

Y7 - Automatic dimming interior rearview mirror Component Locations

(370) - Ground connection 5 (in main wiring harness)

(B427) - Mirror auto-dimming signal connection 1 (in main wiring harness)

(B428) - Mirror auto-dimming signal connection 2 (in main wiring harness)

(B566) - Connection 33 (in main wiring harness)

* - Only for vehicles with high beam assist

*2 - Only for vehicles with a humidity sensor

*3 - Through May 2012
