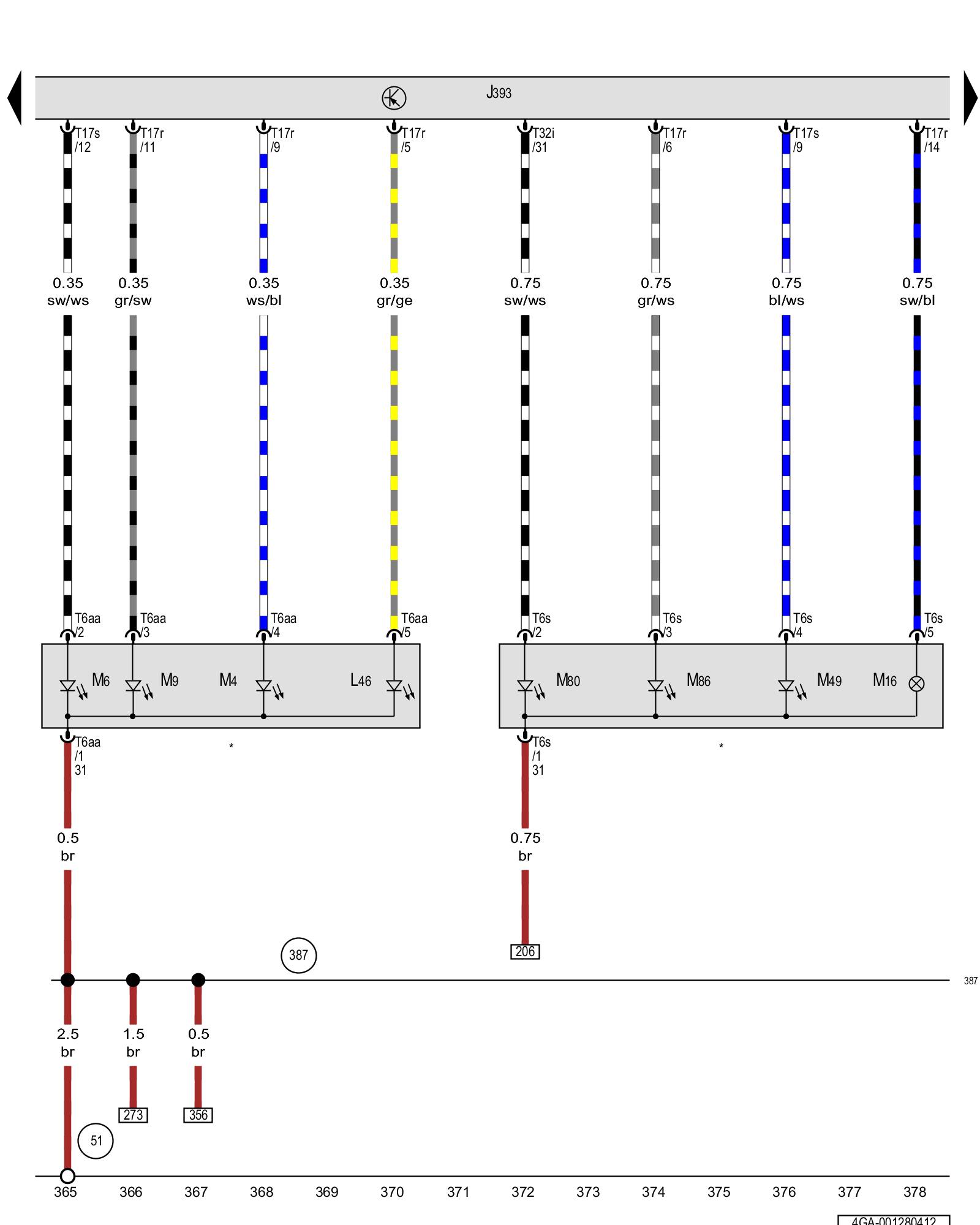

Diagram 1/28 (Tracks 365-378)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Comfort system central control module, Left rear fog lamp bulb, Left tail lamp bulb, Left rear turn signal bulb, Left brake lamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J393 - Comfort system central control module Locations

L46 - Left rear fog lamp bulb

M4 - Left tail lamp bulb

M6 - Left rear turn signal bulb

M9 - Left brake lamp bulb

M16 - Left back-up lamp bulb

M49 - Left tail lamp bulb 2

M80 - Left rear turn signal bulb 2

M86 - Left brake lamp bulb 2

T6aa - 6-pin connector

T6s - 6-pin connector

T17r - 17-pin connector Locations

T17s - 17-pin connector Locations

T32i - 32-pin connector Locations

(51) - Ground connection in luggage compartment, right [1][2]Ground Locations

(387) - Ground connection 22 (in main wiring harness)

* - Not for USA
