Diagram 1/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

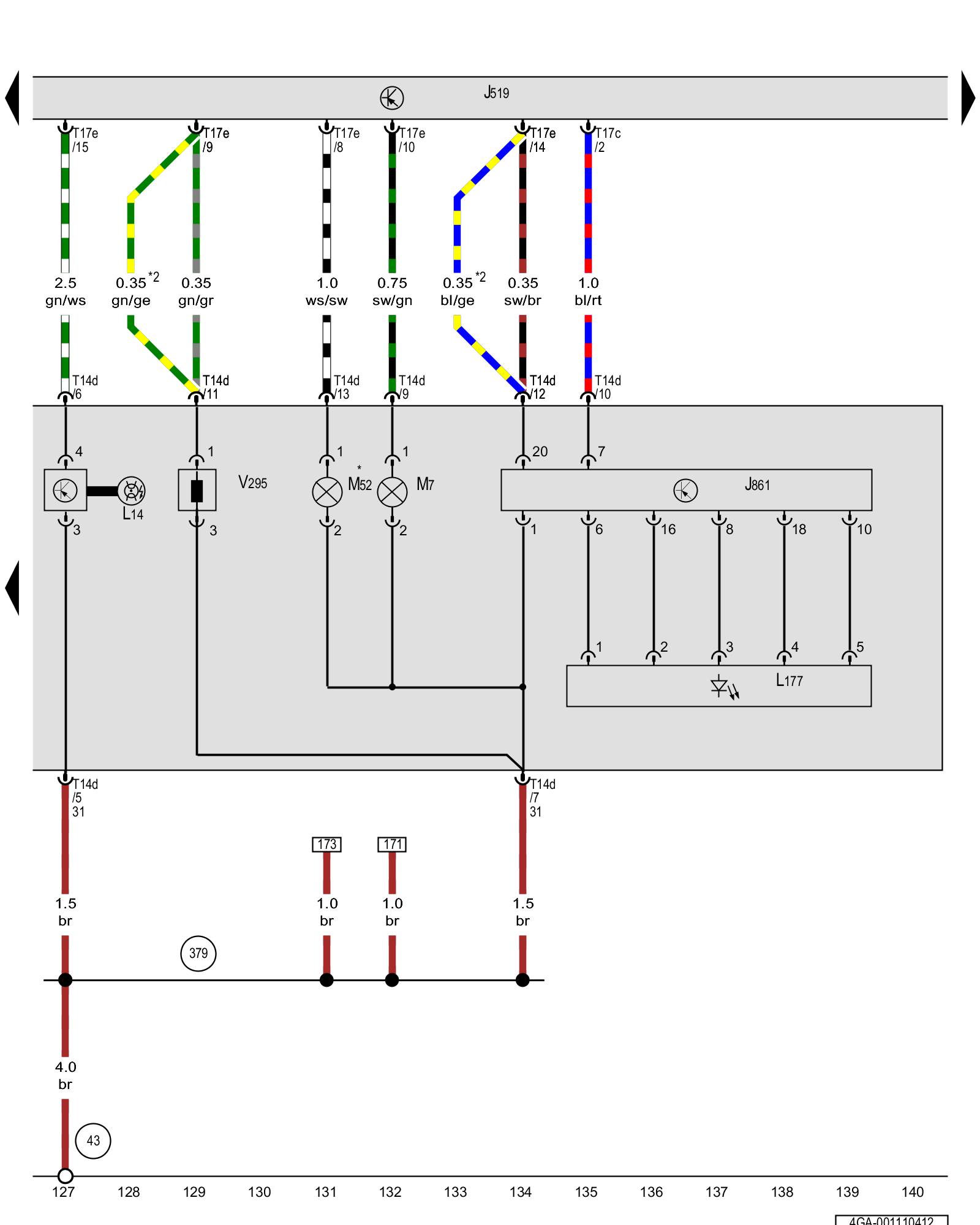

Vehicle electrical system control module, Right daytime running lamp and parking lamp control module, Right HID headlamp bulb, Right daytime running lamp and parking lamp LED module, Right front turn signal bulb, Right stationary cornering lamp, Right low beam headlamp reflector motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations

J861 - Right daytime running lamp and parking lamp control module

L14 - Right HID headlamp bulb

L177 - Right daytime running lamp and parking lamp LED module

M7 - Right front turn signal bulb

M52 - Right stationary cornering lamp

T14d - 14-pin connector

T17c - 17-pin connector Vehicle Electrical System Control Module -J519-

T17e - 17-pin connector Vehicle Electrical System Control Module -J519-

V295 - Right low beam headlamp reflector motor

(43) - Ground connection on A-pillar, lower right [1][2]Ground Locations

(379) - Ground connection 14 (in main wiring harness)

* - All-weather lights

*2 - from June 2011
