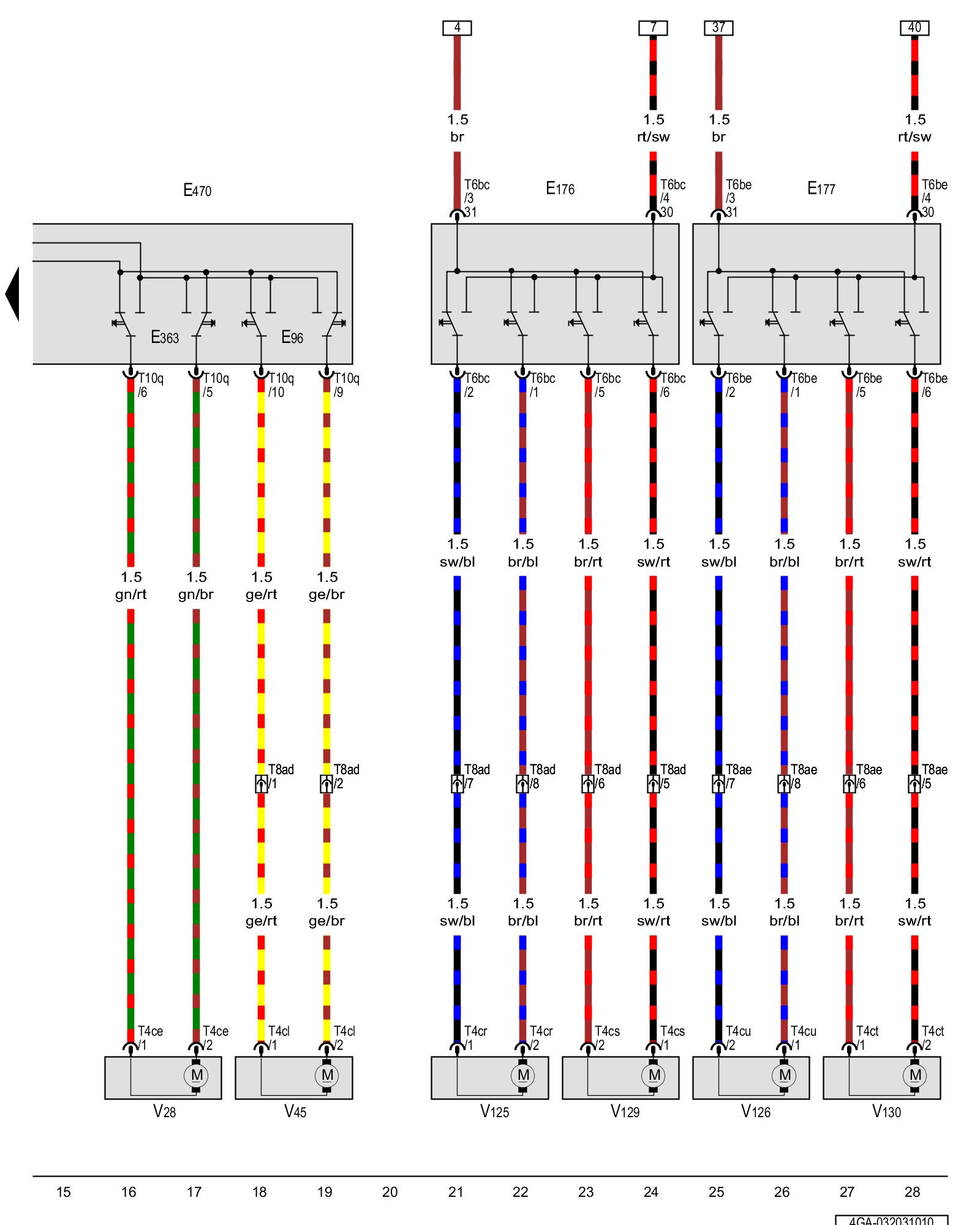

Diagram 32/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver seat lumbar support adjustment switch, Front passenger seat lumbar support adjustment switch, Driver seat adjustment control head





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E96 - Driver backrest adjustment switch

E176 - Driver seat lumbar support adjustment switch

E177 - Front passenger seat lumbar support adjustment switch

E363 - Driver seat forward/back adjustment switch

E470 - Driver seat adjustment control head

T4ce - 4-pin connector

T4cl - 4-pin connector

T4cr - 4-pin connector

T4cs - 4-pin connector

T4ct - 4-pin connector

T4cu - 4-pin connector

T6bc - 6-pin connector

T6be - 6-pin connector

T8ad - 8-pin connector, in the driver seat

T8ae - 8-pin connector, in the front passenger seat

T10q - 10-pin connector

V28 - Driver seat forward/back adjustment motor

V45 - Driver backrest adjustment motor

V125 - Driver seat lumbar support curvature adjustment motor

V126 - Front passenger seat lumbar support curvature adjustment motor

V129 - Driver seat lumbar support height adjustment motor

V130 - Front passenger seat lumbar support height adjustment motor
