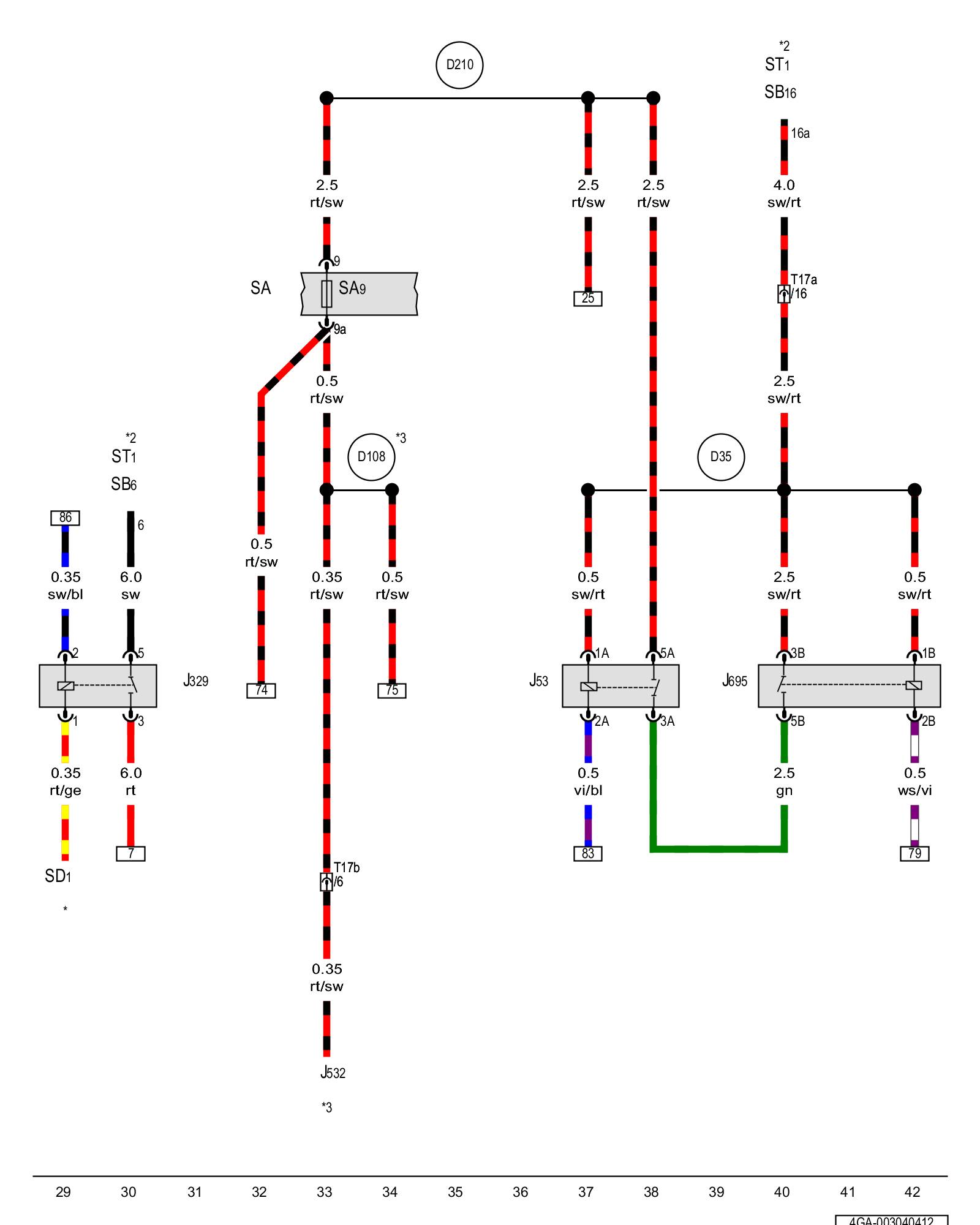

Diagram 3/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Starter relay, Terminal 15 power supply relay, Relay 2 for starter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J53 - Starter relay Locations

J329 - Terminal 15 power supply relay Locations

J532 - Voltage stabilizer Locations

J695 - Relay 2 for starter Locations

SA - Fuse panel A Overview Of Fuses

ST1 - Fuse panel 1

SD1 - Fuse 1 (on fuse panel D) Overview Of Fuses

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

SA9 - Fuse 9 (on fuse panel A) Overview Of Fuses

SB16 - Fuse 16 (on fuse panel B) Overview Of Fuses

T17a - 17-pin connector, Left plenum chamber E-box connector station Locations

T17b - 17-pin connector, Left plenum chamber E-box connector station Locations

(D35) - Positive connection 1 (15a) (in engine wiring harness)

(D108) - Connection (6) (in engine compartment wiring harness)

(D210) - Connection (50) (in engine compartment wiring harness)

* - Refer to applicable standard equipment wiring diagram

*2 - Refer to applicable wiring diagram for fuse positions

*3 - Only for vehicles with Start/Stop system
