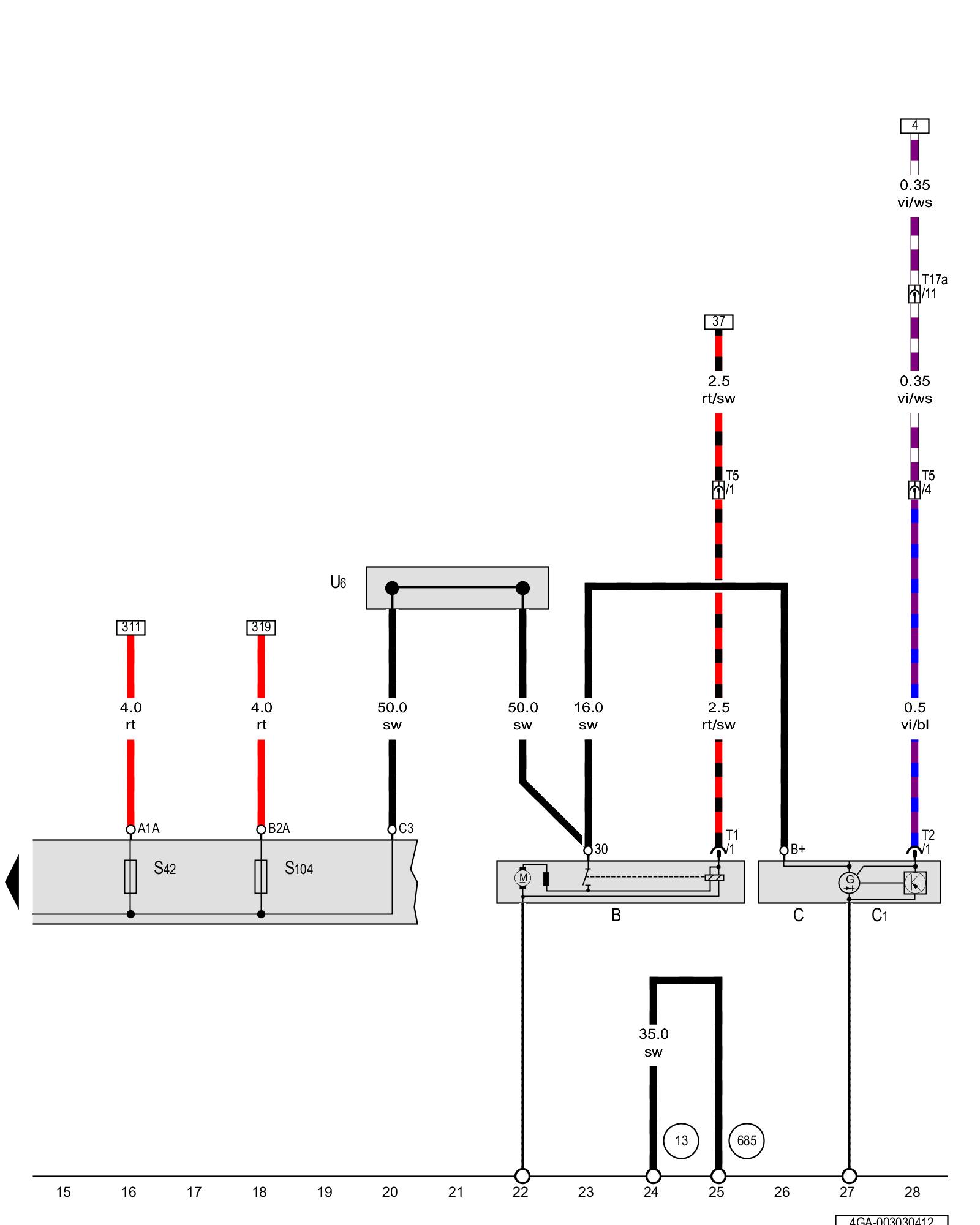

Diagram 3/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Starter, Generator, Coolant fan fuse, Coolant fan second speed fuse, Battery jump start terminal





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

B - Starter

C - Generator

C1 - Voltage regulator

S42 - Coolant fan fuse Terminal 30 Wire Junction -TV2-

S104 - Coolant fan second speed fuse Terminal 30 Wire Junction -TV2-

T1 - Single connector

T2 - Double connector

T5 - 5-pin connector, in the center plenum chamber

T17a - 17-pin connector, Left plenum chamber E-box connector station Locations

U6 - Battery jump start terminal

(13) - Ground connection in engine compartment, right [1][2]Ground Locations

(685) - Ground connection 1 on right front longitudinal member [1][2]Ground Locations
