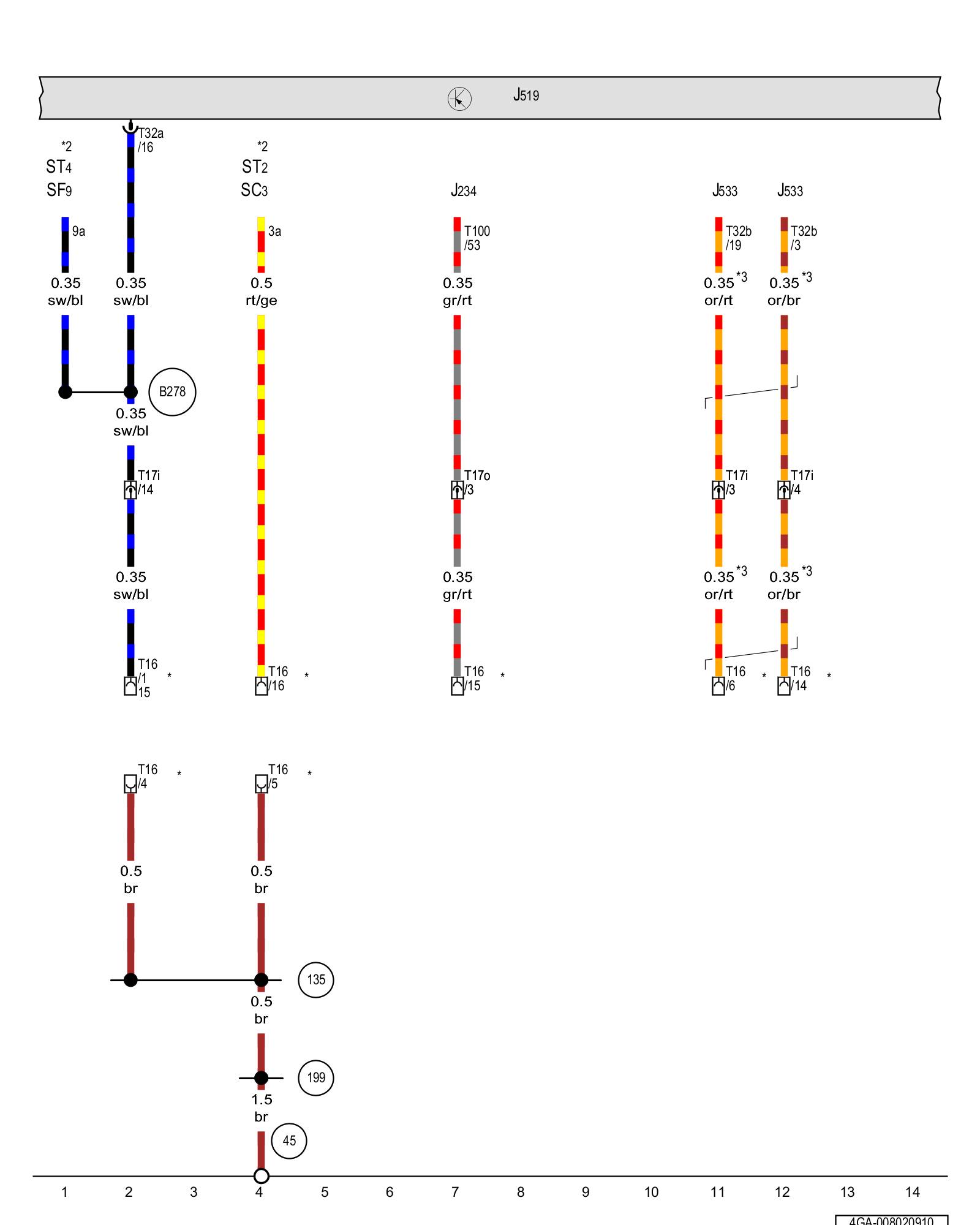

Diagram 8/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Locations

J519 - Vehicle electrical system control module Locations

J533 - Data bus on board diagnostic interface Locations

ST2 - Fuse panel 2

SC3 - Fuse 3 (on fuse panel C)

ST4 - Fuse panel 4

SF9 - Fuse 9 (on fuse panel F)

T16 - 16-pin connector Locations

T17i - 17-pin connector, in the left A-pillar connector station Locations

T17o - 17-pin connector, in the connector station, right A-pillar Locations

T32a - 32-pin connector Vehicle Electrical System Control Module -J519-

T32b - 32-pin connector Locations

T100 - 100-pin connector Locations

(45) - Ground connection behind instrument panel, center [1][2]Ground Locations

(135) - Ground connection 2 (in instrument panel wiring harness)

(199) - Ground connection 3 (in instrument panel wiring harness)

(B278) - Positive connection 2 (15a) (in main wiring harness)

* - Diagnostic connector

*2 - Refer to applicable wiring diagram for fuse positions

*3 - Data bus wire (CAN bus)
