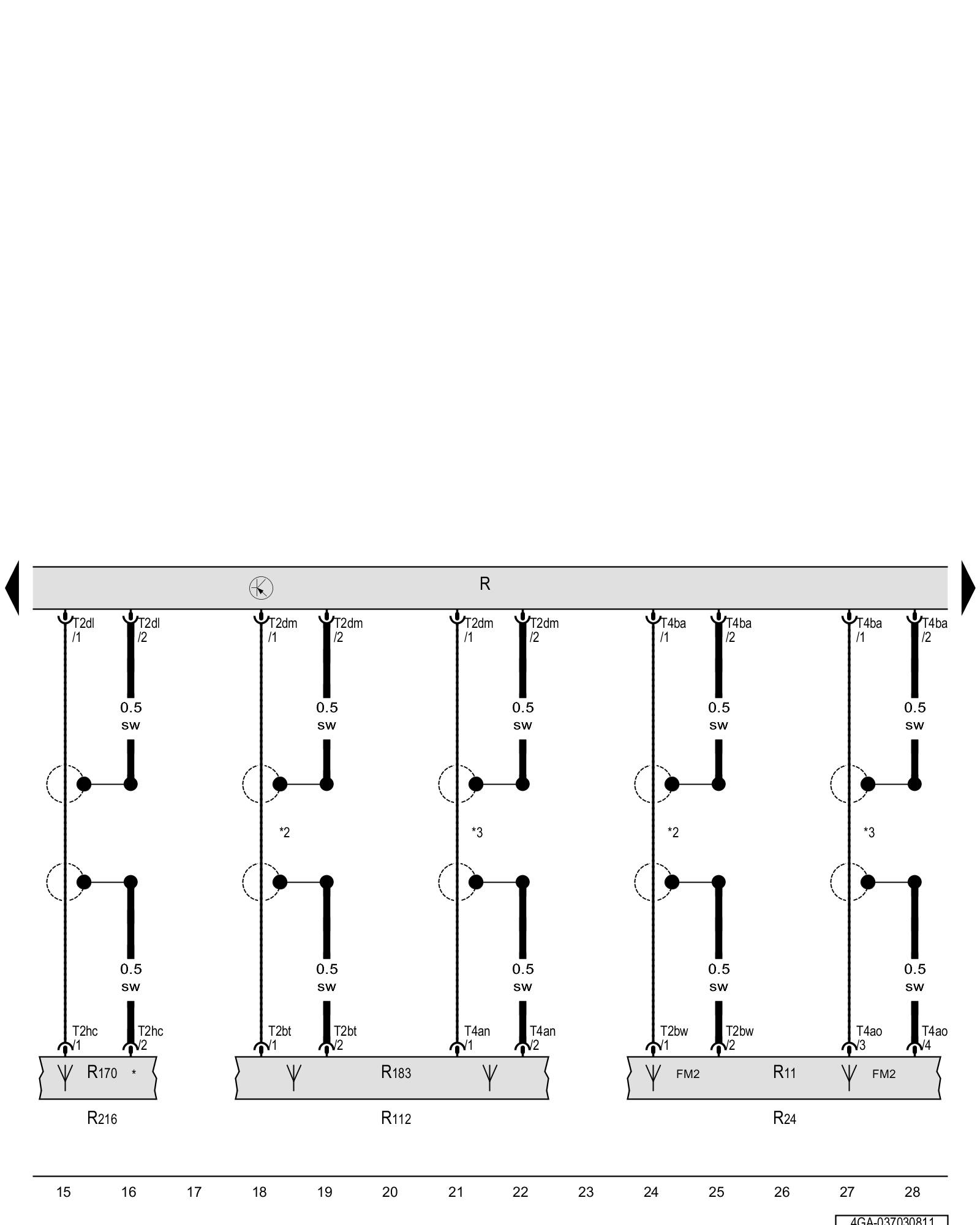

Diagram 37/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

R - Radio

R11 - Antenna

R24 - Antenna amplifier Locations

R112 - Antenna amplifier 3 Locations

R170 - Satellite antenna

R183 - Digital radio antenna

R216 - Roof antenna Locations

T2bt - Double connector

T2bw - Double connector

T2dl - Double connector

T2dm - Double connector

T2hc - Double connector

T4an - 4-pin connector

T4ao - 4-pin connector

T4ba - 4-pin connector

* - USA only

*2 - Only for vehicles without TV reception

*3 - Only for vehicles with TV tuner
