Diagram 37/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Digital sound system control module 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

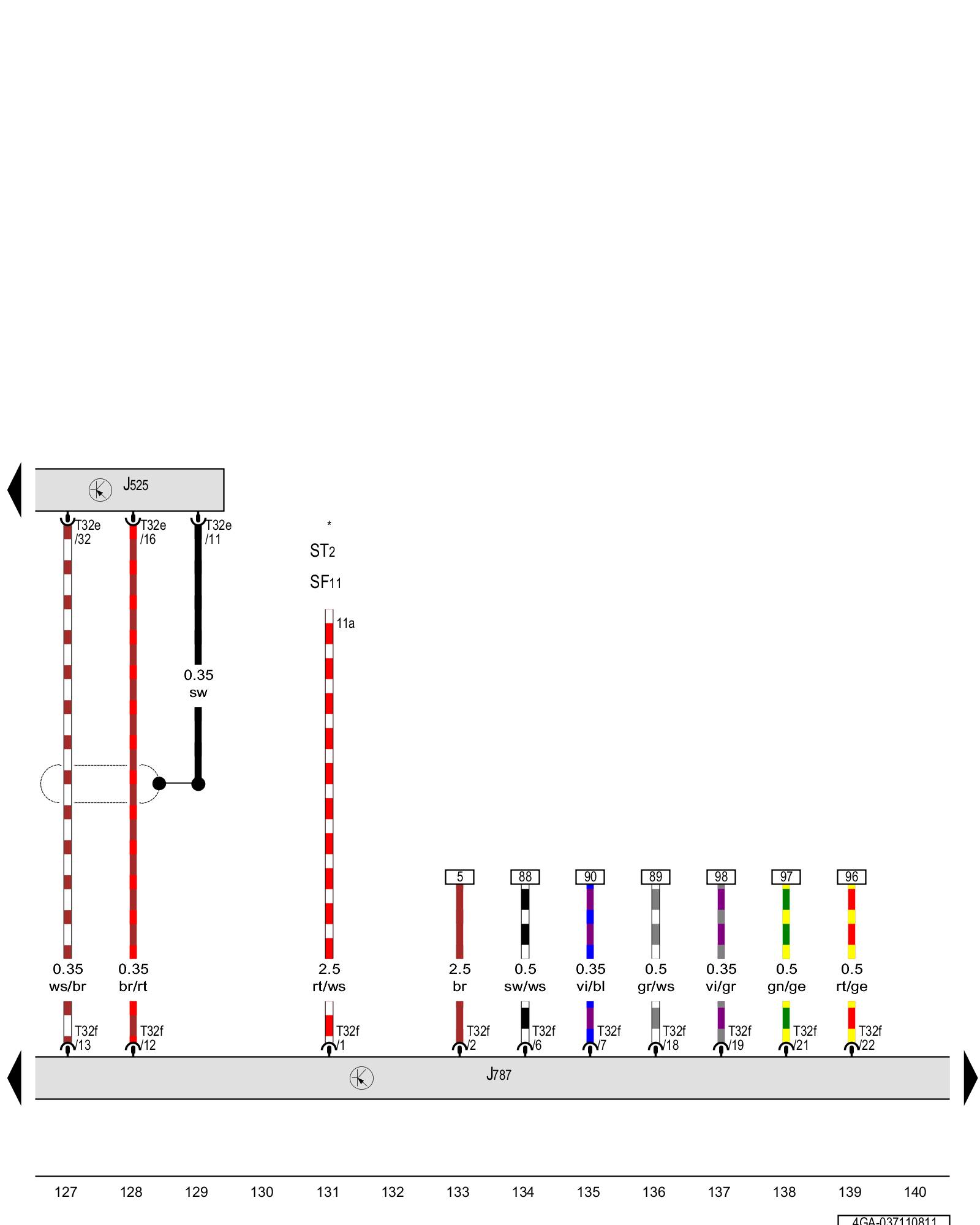

J525 - Digital sound system control module Sound System Control Module Overview

J787 - Digital sound system control module 2 Sound System Control Module Overview

ST2 - Fuse panel 2

SF11 - Fuse 11 (on fuse panel F) Overview Of Fuses

T32e - 32-pin connector

T32f - 32-pin connector

* - Refer to applicable wiring diagram for fuse positions

Previous Diagram 37/10 (Tracks 113-126)

Next Diagram 37/12 (Tracks 141-154)
