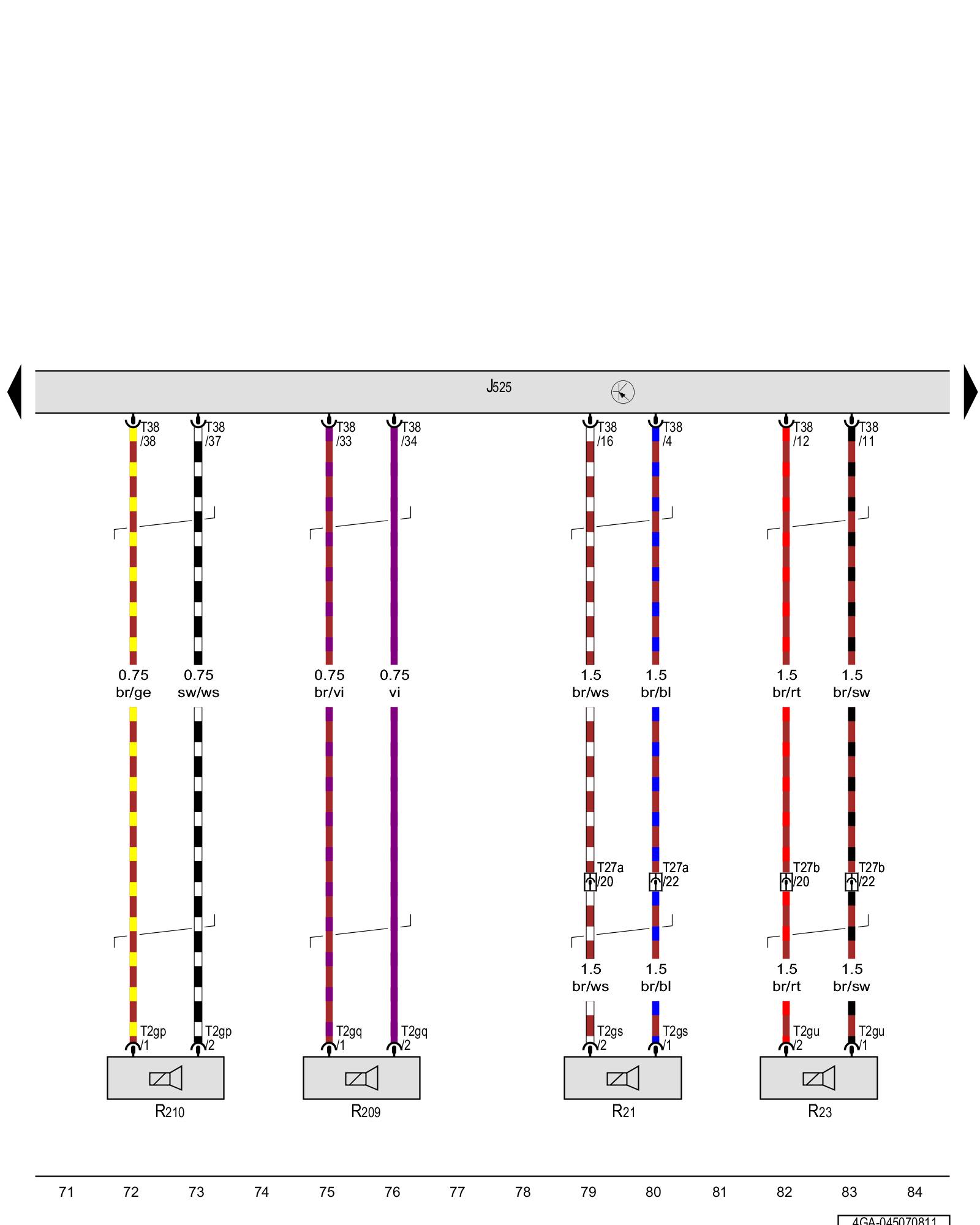

Diagram 45/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Digital sound system control module, Left front bass speaker, Right front bass speaker, Right effects speaker





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J525 - Digital sound system control module Sound System Control Module Overview

R21 - Left front bass speaker BOSE(R) and Bang & Olufsen(R) - Loudspeakers System Overview -

R23 - Right front bass speaker BOSE(R) and Bang & Olufsen(R) - Loudspeakers System Overview -

R209 - Left effects speaker BOSE(R) and Bang & Olufsen(R) - Loudspeakers System Overview -

R210 - Right effects speaker BOSE(R) and Bang & Olufsen(R) - Loudspeakers System Overview -

T2gp - Double connector

T2gq - Double connector

T2gs - Double connector

T2gu - Double connector

T27a - 27-pin connector, on the left A-pillar

T27b - 27-pin connector, on the right A-pillar

T38 - 38-pin connector
