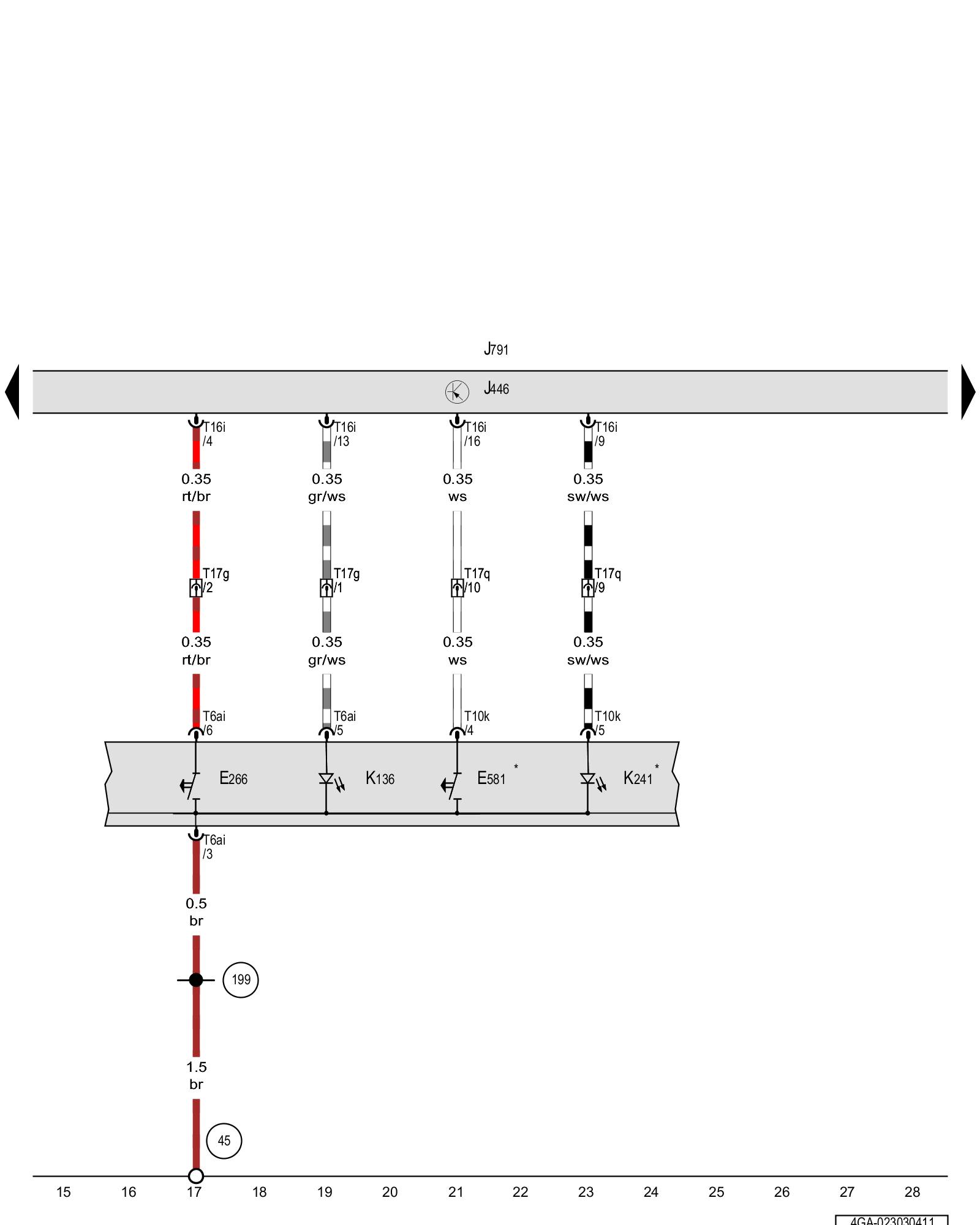

Diagram 23/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Parking aid button, Parallel parking assistance button, Parking aid control module, Parallel parking assistance control module, Parking aid indicator lamp, Parallel parking assistance indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E266 - Parking aid button Parking Aid Systems

E581 - Parallel parking assistance button Parking Aid Systems

J446 - Parking aid control module Locations Parking Aid Systems

J791 - Parallel parking assistance control module Locations Parking Aid Systems

K136 - Parking aid indicator lamp

K241 - Parallel parking assistance indicator lamp

T6ai - 6-pin connector

T10k - 10-pin connector

T16i - 16-pin connector Locations

T17g - 17-pin connector, in the left A-pillar connector station Locations

T17q - 17-pin connector, in the connector station, right A-pillar Locations

(45) - Ground connection behind instrument panel, center [1][2]Ground Locations

(199) - Ground connection 3 (in instrument panel wiring harness)

* - Only for vehicles with parallel parking assistance
