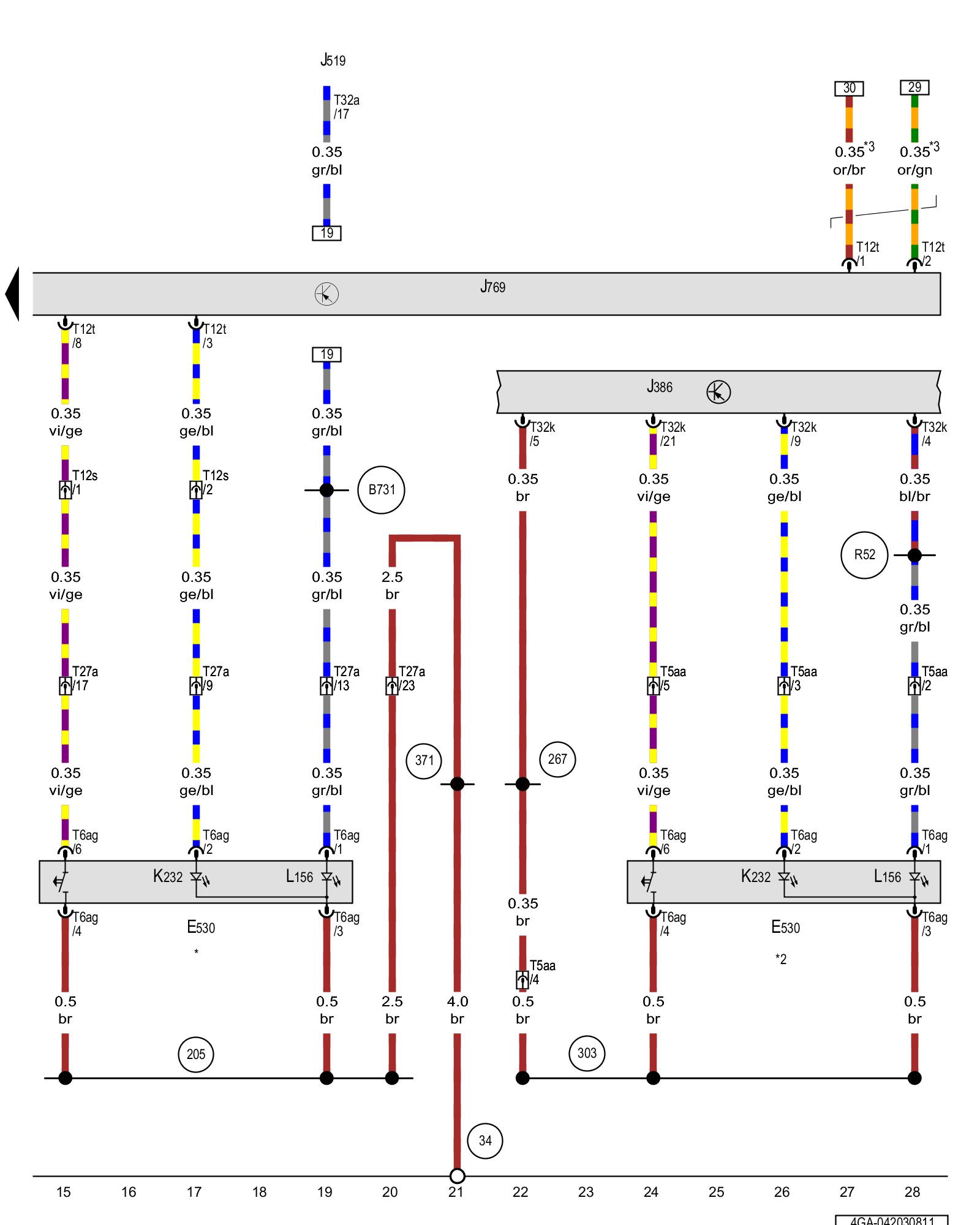

Diagram 42/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Lane change assistance button, Lane change assistance control module, Lane change assistance indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E530 - Lane change assistance button Lane Assist System Overview

J386 - Driver door control module Locations

J519 - Vehicle electrical system control module Locations

J769 - Lane change assistance control module Locations Lane Assist System Overview

K232 - Lane change assistance indicator lamp

L156 - Switch illumination bulb

T5aa - 5-pin connector, in the left front door

T6ag - 6-pin connector

T12s - 12-pin connector, behind the right rear bumper

T12t - 12-pin connector Lane Change Assistance Control Module 2 -J770-

T27a - 27-pin connector, on the left A-pillar

T32a - 32-pin connector Vehicle Electrical System Control Module -J519-

T32k - 32-pin connector Driver's Door Control Module -J386-

(34) - Ground connection under driver seat [1][2]Ground Locations

(205) - Ground connection (in driver door wiring harness)

(267) - Ground connection 2 (in driver door wiring harness)

(303) - Ground connection 3 (in driver door wiring harness)

(371) - Ground connection 6 (in main wiring harness)

(B731) - Connection 1 (58s) (in main wiring harness)

(R52) - Connection (58s) (in driver door wiring harness)

* - Through May 2011

*2 - From June 2011

*3 - Data bus wire (CAN bus)
