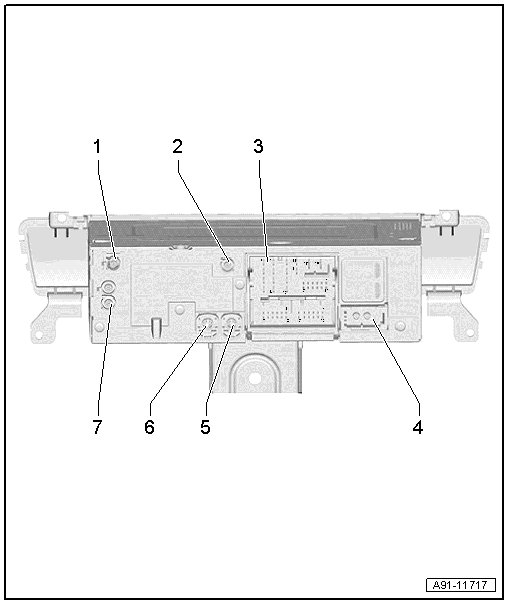

Radio RMC Plus (8DP) Connectors







Radio RMC Plus (8DP) Connectors






1 Connection (DAB) Antenna Amplifier 3 (R112) ( Digital Radio Antenna (R183) )

2 Not assigned

3 Connection Block With Four Multi-Pin Connectors

4 MOST-Bus (T2aw)

5 4-pin Connector (T4z) to the External Audio Source Connection (R199)

6 4-pin Connector (T4df) to the Front Information Display Control Head (J685)

7 (AM/FM/FM2) Antenna Connection

Unlisted connector terminals are not used.

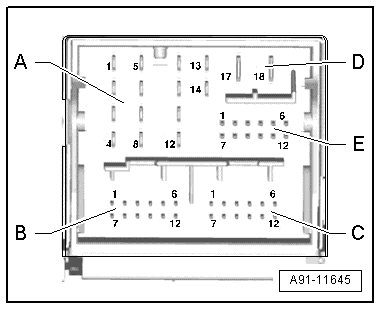

3 - Connection Block With Four Connectors

A - 8-pin Connector (T8e)





1. Speaker (+) rear right

2. Speaker (+) front right

3. Speaker (+) front left

4. Speaker (+) rear left

5. Speaker (-) rear right

6. Speaker (-) front right

7. Speaker (-) front left

8. Speaker (-) rear left


B - 12-pin Connector (T12c)





1 Data to Multimedia system control head (E380)
2 Res BT Multimedia system control head
4 Microphone input wire (+) from the Microphone unit in front roof module (R164) ( Left front microphone (R140) )
7 Data to Multimedia system control head
8 Wake UP Multimedia system control head
9 Res HU to Multimedia system control head
12 Microphone input (-) from Microphone unit in front roof module (R164) ( Left front microphone (R140) )

C - 12-pin Connector (T12e)





All pins are connected to the External audio source connection (R199).

1. LF-In ground

2. Right LF-In

3. USB (+5 V)

4. USB (ground)

5. iPod (ACC Power)

6. Detect

7. Left LF-In

8. LF-In ground shielding

9. FBAS wire (+)

10. FBAS wire (-)

11. iPod data

12. iPod data


D - 8-pin Connector (T8f)





9 Subwoofer (R211)
10 Center speaker (R208)
13 Subwoofer (R211)
14 Center speaker (R208)
17 Terminal 31
18 Terminal 30

E - 12-pin Connector (T12d)





7 Ring-break diagnostic cable

4 - MOST Bus (T2aw)






1. Input

2. Output


5 - 4-pin Connector (T4z)






All pins are connected to the External audio source connection (R199).

1. D (+)

2. iPod recognized

3. D (-)

4. Ground


6 - 4-pin Connector (T4df)






All pins are connected to the Front information display control head (J685).

1. LVDS (-)

2. LIN

3. LVDS (+)

4. Ground


7 - (AM/FM1/FM2) Antenna Connection






A Chamber 2 (AM/FM1) Antenna Amplifier 2 (R111) ( Radio Antenna 2 (R93) )
B Chamber 1 (FM2) Antenna Amplifier (R24) ( Antenna (R11) )
