Multimedia System Control Head (E380) Connectors

Multimedia System Control Head (E380) Connectors

• Unlisted connector terminals are not used.

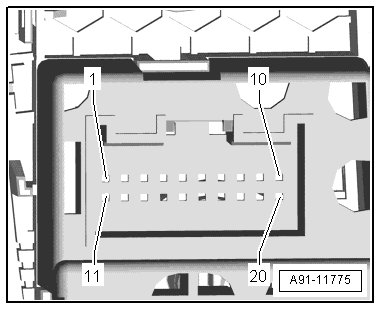

20-pin Connector (T20b)





3 Display mount (T8o)
4 Display -closed- stop switch (F331) (T8o)
5 Display -open- stop switch (F330) (T8o)
6 Wake UP to the Information electronics control module 1 (J794)
7 Terminal 30
8 Terminal 31
10 Display unit button (E506) inside the instrument panel
13 Res HU to the Information electronics control module 1 (J794)
14 Res BT to the Information electronics control module 1 (J794)
15 Information electronics control module 1 (J794) data
16 Data to the Information electronics control module 1 (J794)
19 Display opening/closing motor (V301) (T8o)
20 Display opening/closing motor (V301) (T8o)
