Front Information Display Control Head (J685) Connectors

Front Information Display Control Head (J685) Connectors

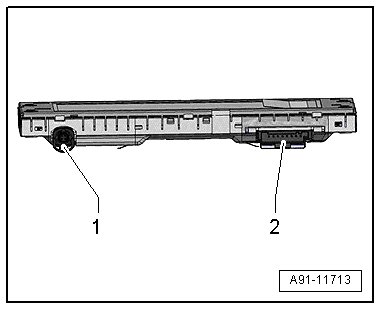

Front Information Display Control Head (J685)





1. 4-pin connector (T4de/T4dd) from Information electronics control module 1 (J794)

2. 8-pin connector (T8ag)


• Unlisted connector terminals are not used.

1 - 4-pin Connector (T4de/T4dd))





All pins are connected to the Information electronics control module 1 (J794).

1. LVDS (-)

2. LIN

3. LVDS (+)

4. Ground


2 - 8-pin Connector (T8ag)





4 Terminal 30
5 Terminal 31
