Compact Disc Player (CD)

CD Changer (R41) Connectors

CD Changer

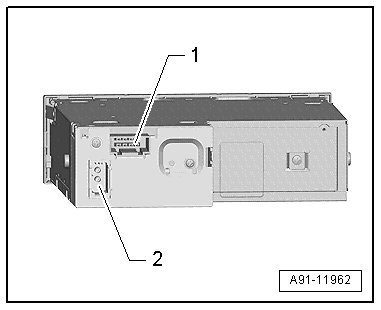

1. 8-pin multi-pin connector (T8q)

2. MOST bus (T2bp)


• Unlisted connector terminals are not used.

1 - 8-pin Connector (T8q)





1 Terminal 31
2 Terminal 30
5 Ring-break diagnostic cable

2 - MOST Bus (T2bp)





1. Input

2. Output
