Diagram 24/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

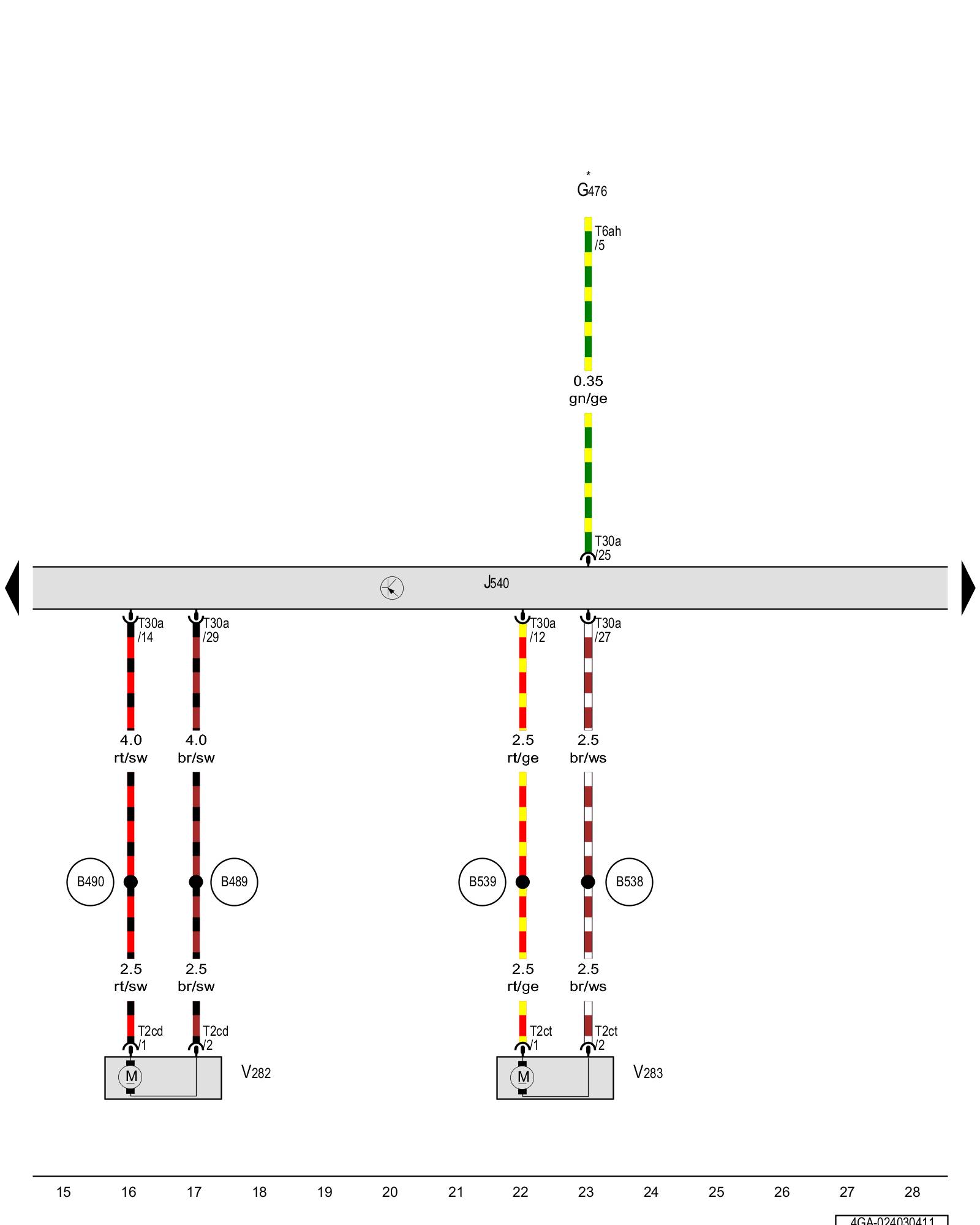

Clutch position sensor, Electromechanical parking brake control module, Left parking brake motor, Right parking brake motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G476 - Clutch position sensor

J540 - Electromechanical parking brake control module Locations Electromechanical Parking Brake - Overview

T2cd - Double connector

T2ct - Double connector

T6ah - 6-pin connector

T30a - 30-pin connector Locations

V282 - Left parking brake motor Electromechanical Parking Brake - Overview

V283 - Right parking brake motor Electromechanical Parking Brake - Overview

(B489) - Connection 25 (in main wiring harness)

(B490) - Connection 26 (in main wiring harness)

(B538) - Connection 29 (in main wiring harness)

(B539) - Connection 30 (in main wiring harness)

* - Refer to applicable engine wiring diagram

Previous Diagram 24/2 (Tracks 1-14)

Next Diagram 24/4 (Tracks 29-42)
