Rear Noise Insulation

Rear Noise Insulation

Removing

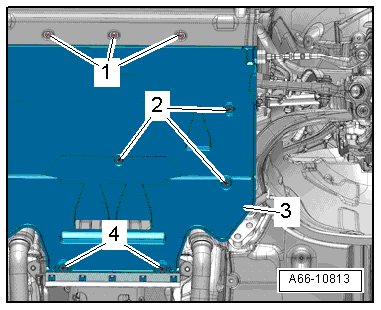

- Remove the bolts - 1 -.

- Open the quick-release fasteners - 2 and 4 -.

- Remove the rear noise insulation - 3 -.

Installing

To install, perform the steps used in removal in reverse order.
