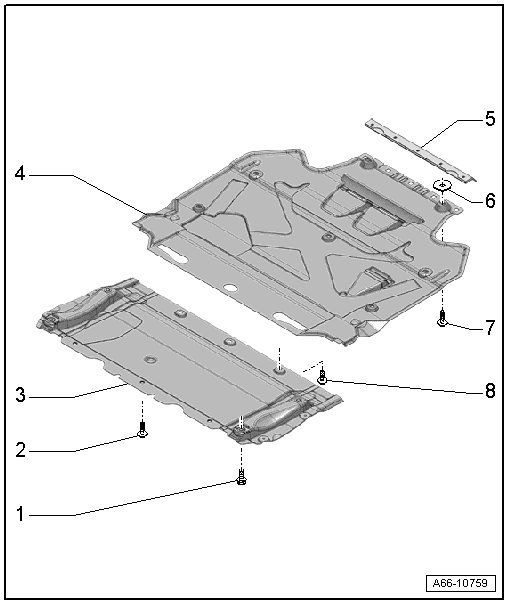

Front and Rear Noise Insulation Assembly Overview

Front and Rear Noise Insulation Assembly Overview






1 M8 bolt

• Quantity: 4

• 20 Nm

2 Quick-release fastener

• Quantity: 3

3 Noise insulation, front

• for the engine

• Removing and Installing, refer to => [ Front Noise Insulation ] Front Noise Insulation

4 Rear noise insulation

• For the transmission

• Removing and Installing, refer to => [ Rear Noise Insulation ] Rear Noise Insulation

5 Air duct

6 Rubber disc

• Quantity: 7

7 Quick-release fastener

• Quantity: 7

8 M6 bolt

• Quantity: 3

• 3.5 Nm
