Front Noise Insulation

Front Noise Insulation

Removing

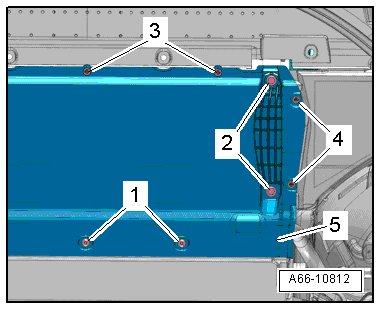

- Remove the bolts - 1 and 2 - and open the quick-release quick-release fasteners - 3 and 4 -.

- Remove the front noise insulation - 5 - to the rear.

• The guide tabs for the front noise insulation will disengage while doing this.

- Remove the front noise insulation.

Installing

• For the correct tightening specifications, refer to => [ Front and Rear Noise Insulation Assembly Overview ] Front and Rear Noise Insulation Assembly Overview.

To install, perform the steps used in removal in reverse order.
