Headrest Cover and Cushion

Headrest Cover and Cushion

Removing






- Remove the rear head restraint. Refer to => [ Rear Headrest, Standard Seat/Sport Seat ] Rear Headrest, Standard Seat/Sport Seat.

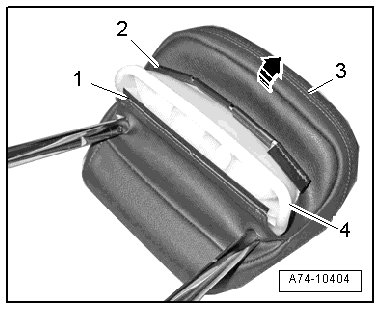

- Open lock by prying the upper side of the cover with the flat channel - 1 - loose from the headrest support using a screwdriver and removing it.

- Pry lower cover side with the U-channel - 2 - loose from the headrest support and remove it.

- Pull off cover and cushion - 4 - over the headrest support - 4 - and remove headrest support - arrow -.

- Remove cushion from the cover.

Installation

- Insert cushion with proper fit in the cover.

- Insert headrest support in the cushion with cover.

- Close the closure by first clipping the lower U-channel of the cover into the headrest support.

- Clip the edge of the cover with the upper flat channel of the cover into the U-channel.

- After closing the closure with a needle or pointed object, line up the cover and the channels.

- Make sure the cover lies on the upholstery without any wrinkles and without seam markings.

Further installation is performed in the reverse order of removal.
