Driver multicontour seat compressor (V439) / front passenger multicontour seat compressor (V440)

Removing

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Pyrotechnic, Electrical and Mechanical Restraint System Components, Safety Precautions and Testing Procedures ] Testing and Inspection.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove the front seat. Refer to => [ Power Standard Seat/Sport Seat/Super Sport Seat ] Power Standard Seat/Sport Seat/Super Sport Seat.

- Attach front seat to the fixture for seat repair (VAS 6136). Refer to => [ Installing Front Seat on Fixture for Seat Repair VAS 6136 ] Installing Front Seat on Fixture For Seat Repair VAS 6136.

- Disconnect the connector - 3 -.






- Carefully release latch - arrow -, remove pneumatic line - 1 - from the compressor - 2 -.

- Free up pneumatic line to the compressor.

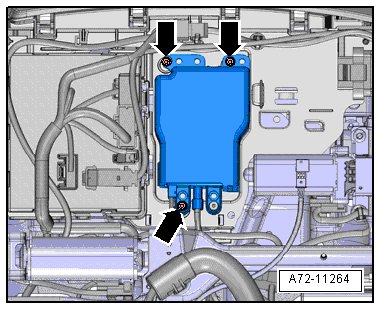

- Remove the nuts - arrows - and compressor.






Installation

• Follow all safety precautions when working on pyrotechnic components. Refer to => [ Pyrotechnic, Electrical and Mechanical Restraint System Components, Safety Precautions and Testing Procedures ] Testing and Inspection.

• Before handling pyrotechnical components (for example, connecting electrical connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

• Observe all measures when installing the front seat. Refer to => [ Power Standard Seat/Sport Seat/Super Sport Seat ] Power Standard Seat/Sport Seat/Super Sport Seat.

Install in reverse order of removal. Note the following:

• The rubber-metal compress mount must not be installed under tension or twisted.

• Therefore, use pliers to brace the metal plate for the rubber-metal mount while tightening the nut, making sure to avoid damaging the rubber-metal mount.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Multi-Contour Seat Compressor Assembly Overview ] Multi-Contour Seat Compressor Assembly Overview.
