Backrest Bolster Adjuster

Backrest Bolster Adjuster

Removing






- Remove backrest cover together with backrest cushion. Refer to => [ Backrest Cover with Backrest Cushion for Multi-contour Seat ] Backrest Cover With Backrest Cushion For Multi-Contour Seat.

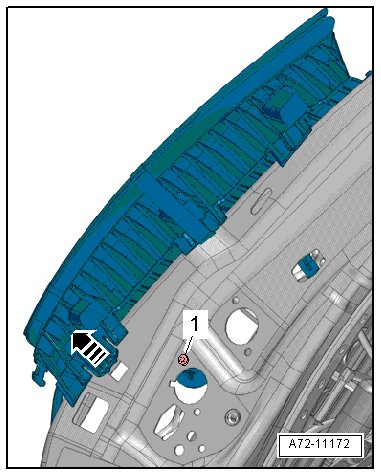

- Remove bolt - 1 -, release lock - arrow -.

- Disconnect pneumatic lines - 1 - and - 3 - at the line connector - 2 -.






Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Seat and Backrest Bolster Adjuster Assembly Overview ] Seat and Backrest Bolster Adjuster Assembly Overview.
