Backrest Cover and Backrest Cushion For Multi-Contour Seat, Separating and Connecting

Backrest Cover and Backrest Cushion for Multi-contour Seat, Separating and Connecting

Special tools, testers and auxiliary items required

• Upholstery clip pliers (V.A.G 1634)

Removing






- Remove backrest cover and backrest cushion. Refer to => [ Backrest Cover with Backrest Cushion for Multi-contour Seat ] Backrest Cover With Backrest Cushion For Multi-Contour Seat.

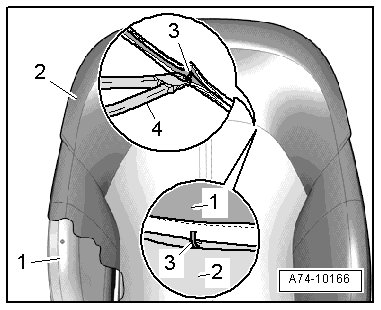

- Pull off backrest cover - 2 - from the backrest cushion - 1 - as far as possible and cut upholstery clips - 3 - using pliers - 4 -.

- Vehicles with backrest heating: disconnect the connector

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Backrest Cover and Backrest Cushion for Multi-contour Seat Assembly Overview ] Backrest Cover and Backrest Cushion For Multi-Contour Seat Assembly Overview.
