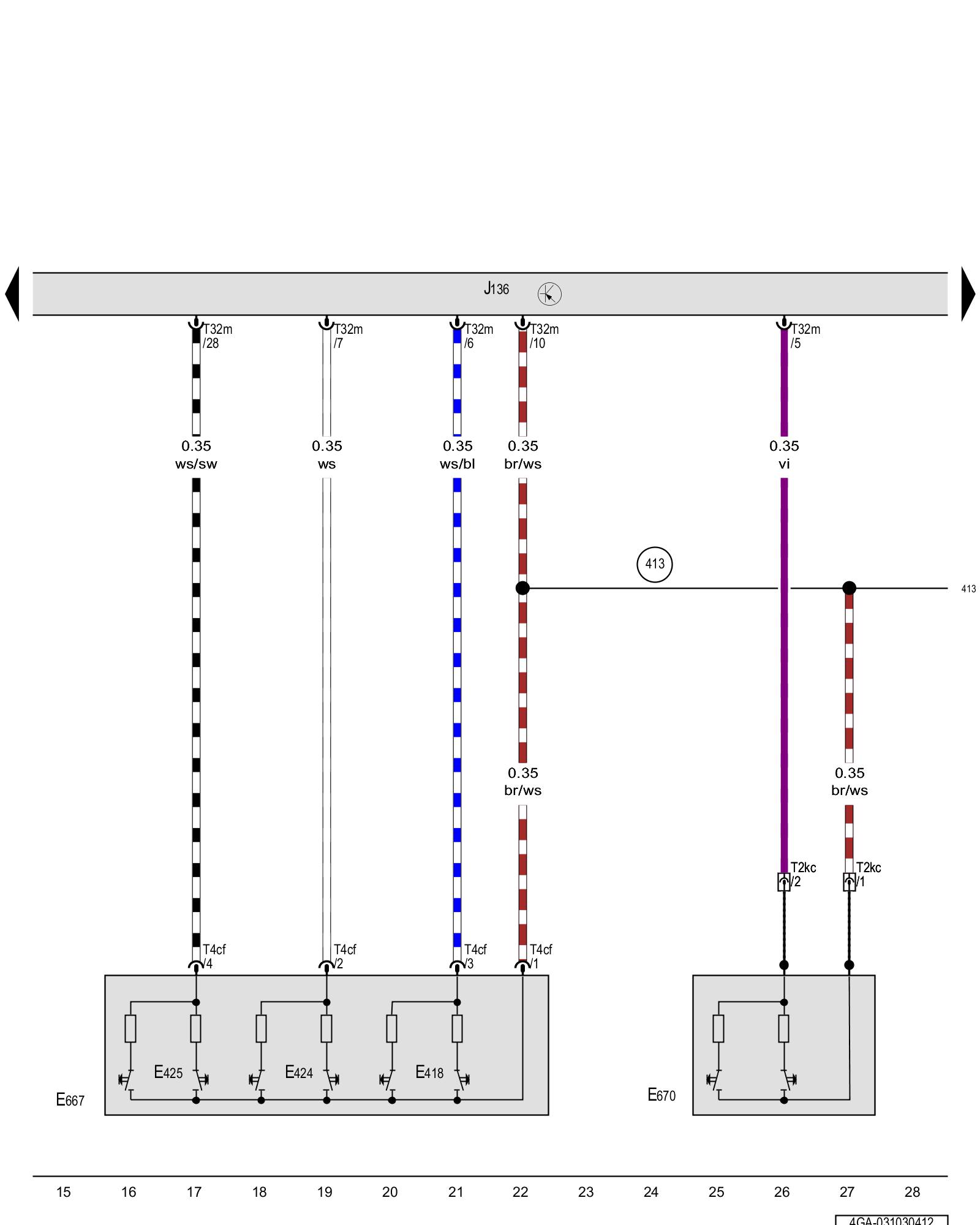

Diagram 31/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Driver seat switch module 2, Driver side massage function button, Memory seat/steering column adjustment control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E418 - Seat forward/back adjustment button

E424 - Seat height adjustment button

E425 - Backrest adjustment button

E667 - Driver seat switch module 2

E670 - Driver side massage function button

J136 - Memory seat/steering column adjustment control module

T2kc - Double connector, in the driver seat

T4cf - 4-pin connector

T32m - 32-pin connector

(413) - Ground connection 4 (in seat adjustment wiring harness)

Previous Diagram 31/2 (Tracks 1-14)

Next Diagram 31/4 (Tracks 29-42)
