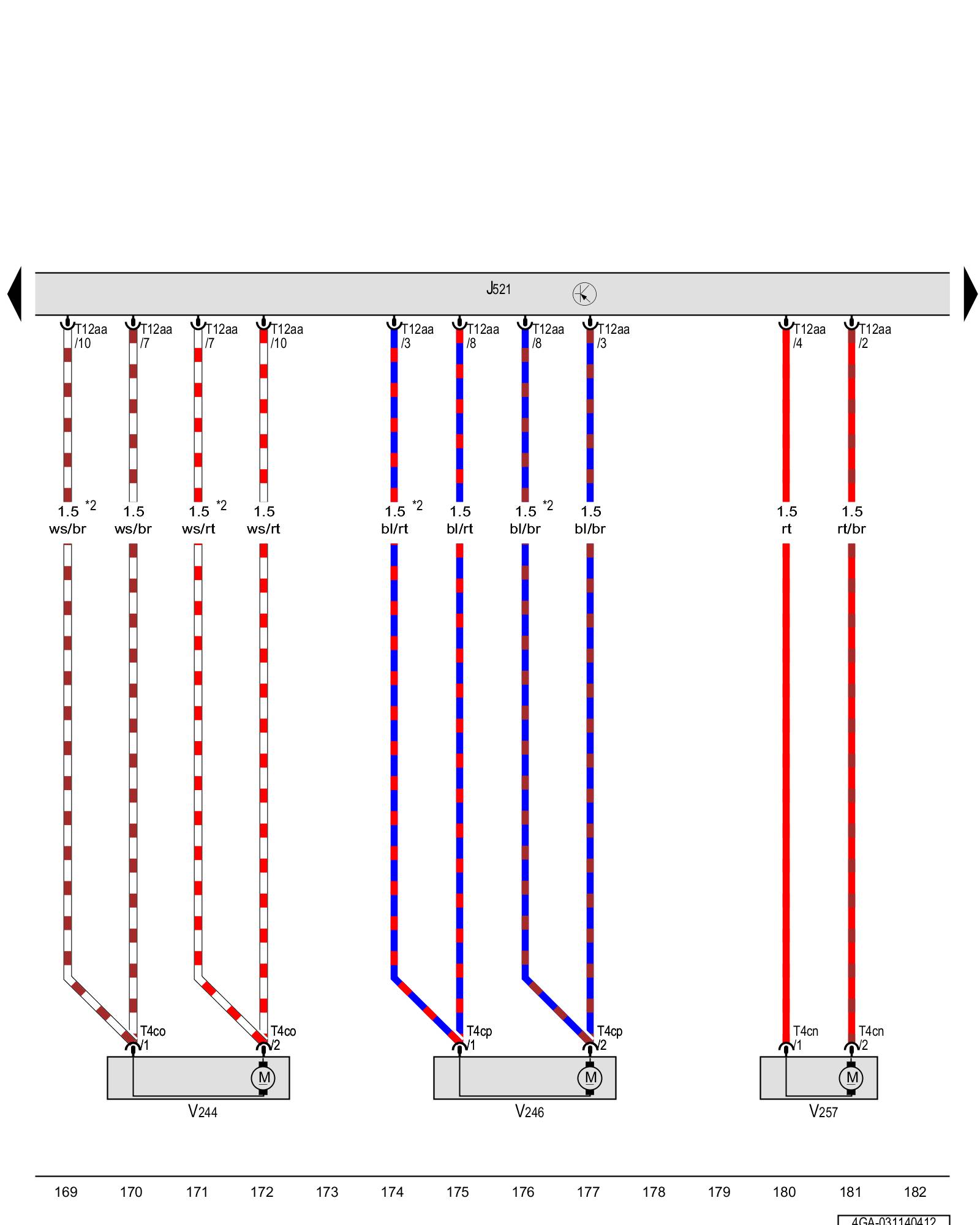

Diagram 31/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger memory seat control module, Front passenger seat angle adjustment motor, Front passenger seat height adjustment motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J521 - Front passenger memory seat control module

T4cn - 4-pin connector

T4co - 4-pin connector

T4cp - 4-pin connector

T12aa - 12-pin connector

V244 - Front passenger seat angle adjustment motor

V246 - Front passenger seat height adjustment motor

V257 - Front passenger seat depth adjustment motor

* - Comfort CAN bus

*2 - Only for right-hand drive vehicles
