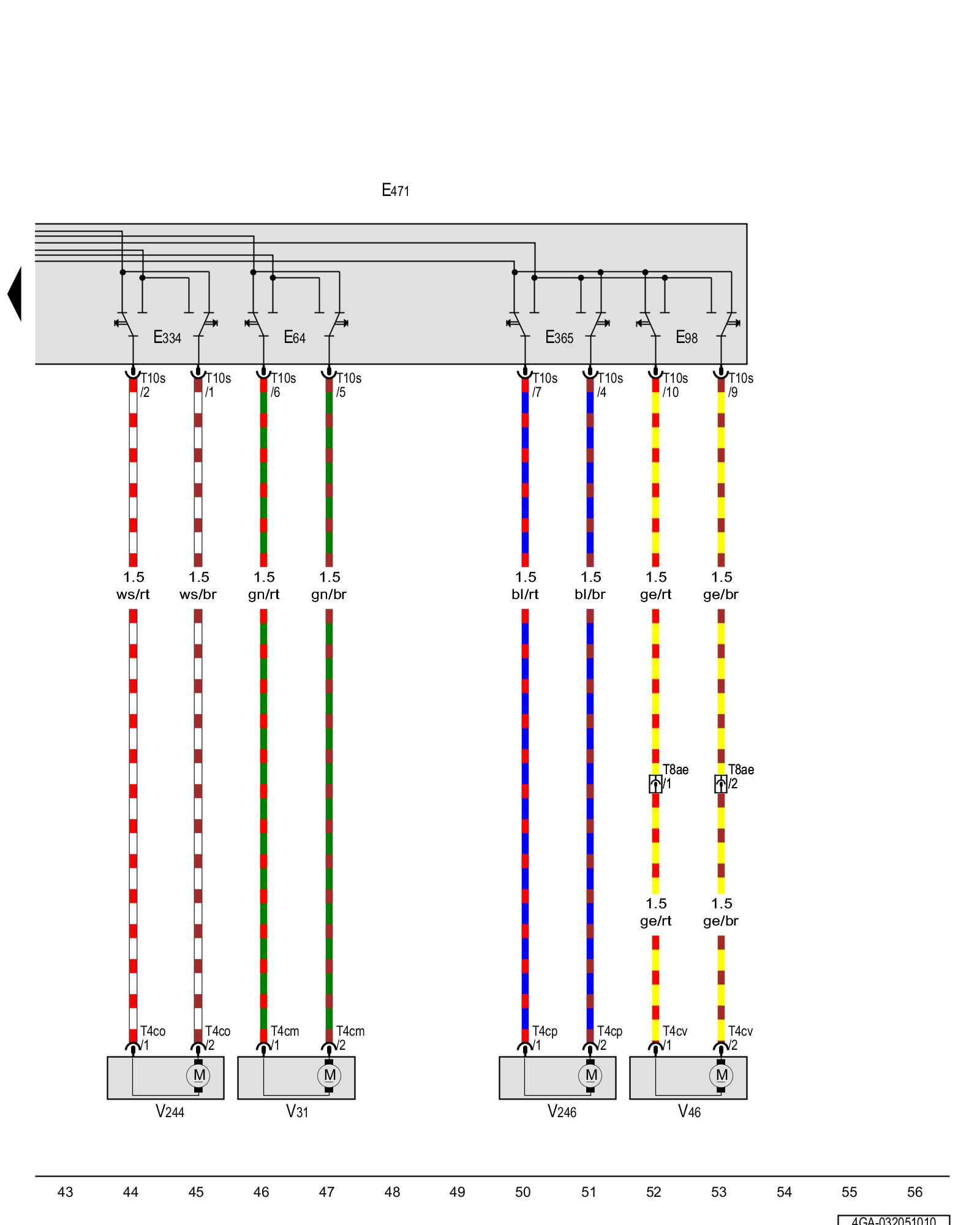

Diagram 32/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Front passenger seat adjustment control head





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E64 - Front passenger seat forward/back adjustment switch

E98 - Front passenger backrest adjustment switch

E334 - Front passenger seat angle adjustment button

E365 - Front passenger seat height adjustment switch

E471 - Front passenger seat adjustment control head

T4cm - 4-pin connector

T4co - 4-pin connector

T4cp - 4-pin connector

T4cv - 4-pin connector

T8ae - 8-pin connector, in the front passenger seat

T10s - 10-pin connector

V31 - Front passenger seat forward/back adjustment motor

V46 - Front passenger backrest adjustment motor

V244 - Front passenger seat angle adjustment motor

V246 - Front passenger seat height adjustment motor
