Diagram 32/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

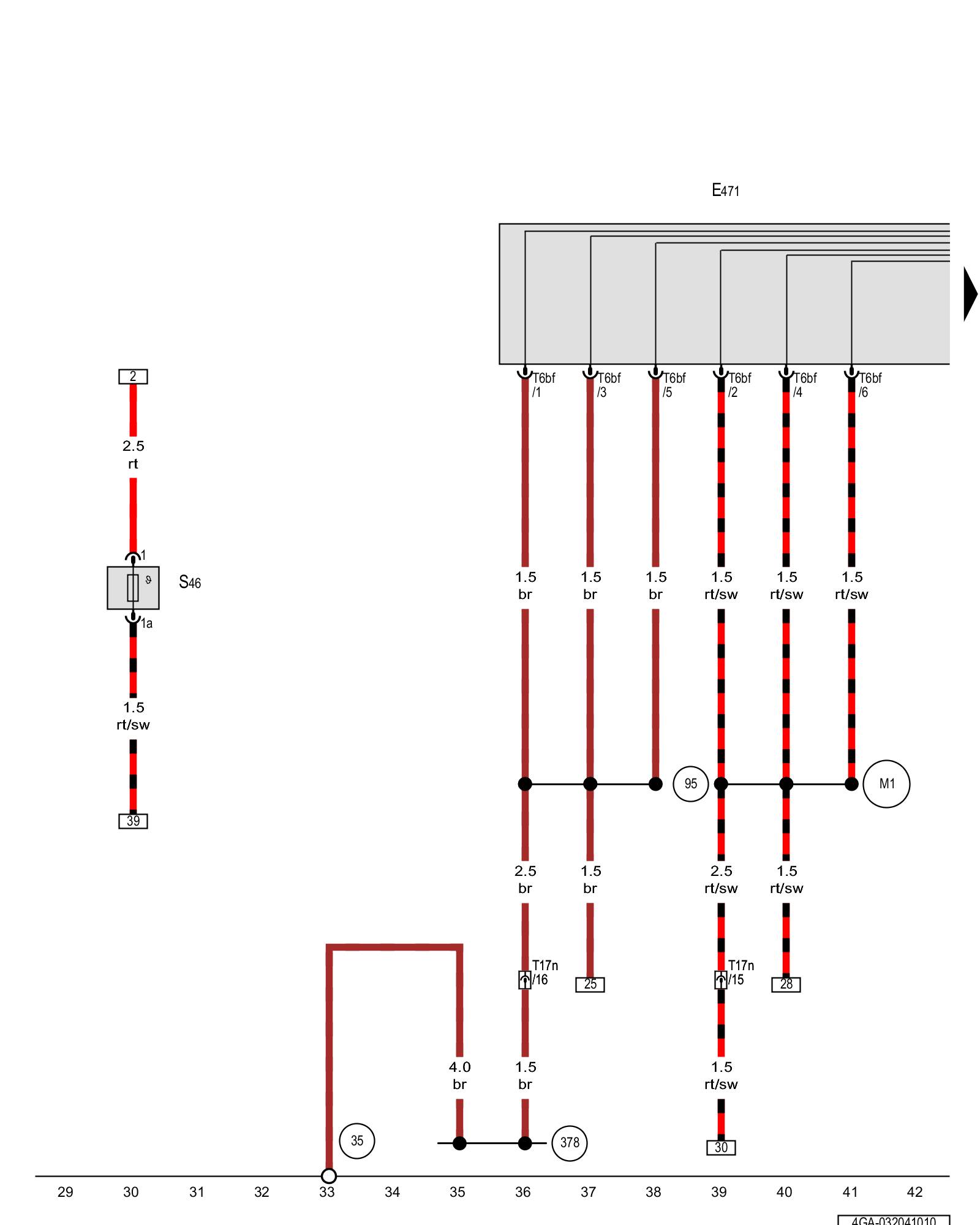

Front passenger seat adjustment control head, Front passenger power seat adjustment circuit breaker 1





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E471 - Front passenger seat adjustment control head

S46 - Front passenger power seat adjustment circuit breaker 1, in the left A-pillar connector station Fuses On Connector Station left A-pillar

T6bf - 6-pin connector

T17n - 17-pin connector, in the coupling point for the right front seat Locations

(35) - Ground connection under front passenger seat [1][2]Ground Locations

(95) - Ground connection 1 (in seat adjustment wiring harness)

(378) - Ground connection 13 (in main wiring harness)

(M1) - Positive connection 1 (30) (in seat adjustment wiring harness)
