Diagram 17/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


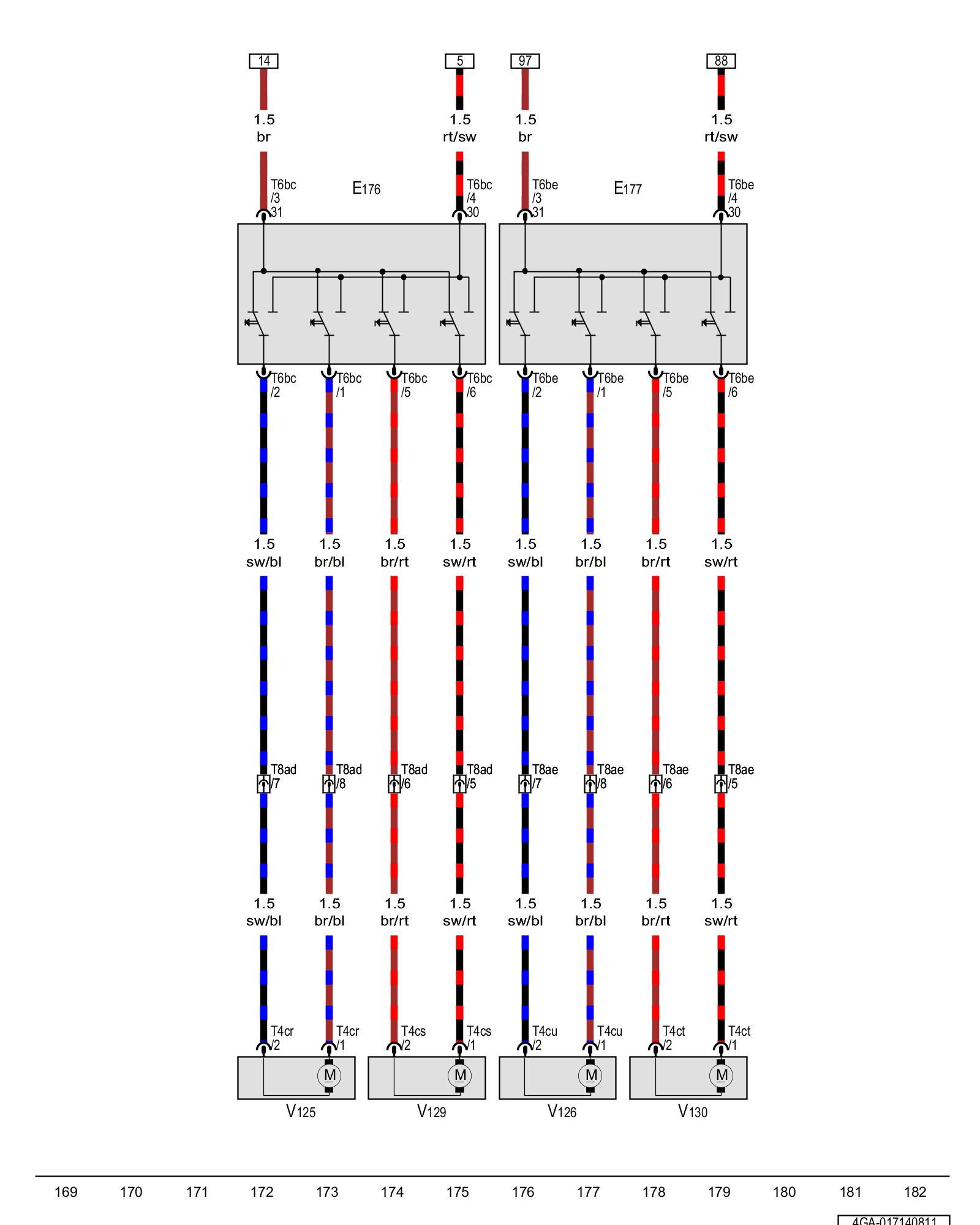

Driver seat lumbar support adjustment switch, Front passenger seat lumbar support adjustment switch





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E176 - Driver seat lumbar support adjustment switch

E177 - Front passenger seat lumbar support adjustment switch

T4cr - 4-pin connector

T4cs - 4-pin connector

T4ct - 4-pin connector

T4cu - 4-pin connector

T6bc - 6-pin connector

T6be - 6-pin connector

T8ad - 8-pin connector, in the driver seat

T8ae - 8-pin connector, in the front passenger seat

V125 - Driver seat lumbar support curvature adjustment motor

V126 - Front passenger seat lumbar support curvature adjustment motor

V129 - Driver seat lumbar support height adjustment motor

V130 - Front passenger seat lumbar support height adjustment motor
