Diagram 17/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

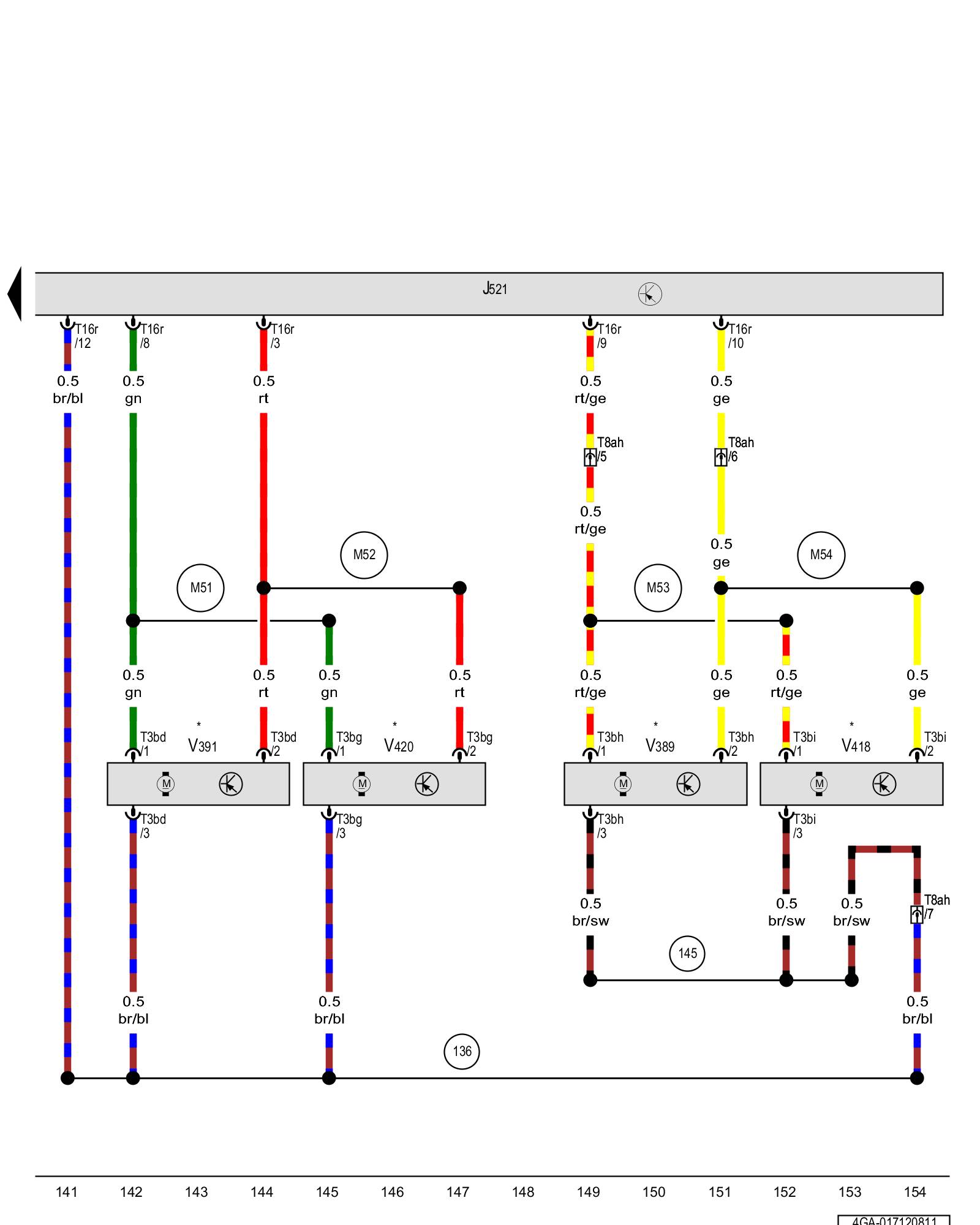

Front passenger memory seat control module, Front passenger seat backrest blower fan, Front passenger seat cushion blower fan





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J521 - Front passenger memory seat control module

T3bd - 3-pin connector

T3bg - 3-pin connector

T3bh - 3-pin connector

T3bi - 3-pin connector

T8ah - 8-pin connector, in the front passenger seat

T16r - 16-pin connector

V389 - Front passenger seat backrest blower fan

V391 - Front passenger seat cushion blower fan

V418 - Front passenger seat backrest blower fan 2

V420 - Front passenger seat cushion blower fan 2

(136) - Ground connection 2 (in heated seats wiring harness)

(145) - Ground connection 3 (in heated seats wiring harness)

(M51) - Connection 1 (in front passenger seat wiring harness)

(M52) - Connection 2 (in front passenger seat wiring harness)

(M53) - Connection 3 (in front passenger seat wiring harness)

(M54) - Connection 4 (in front passenger seat wiring harness)

* - Only for vehicles with seat ventilation

Previous Diagram 17/11 (Tracks 127-140)

Next Diagram 17/13 (Tracks 155-168)
