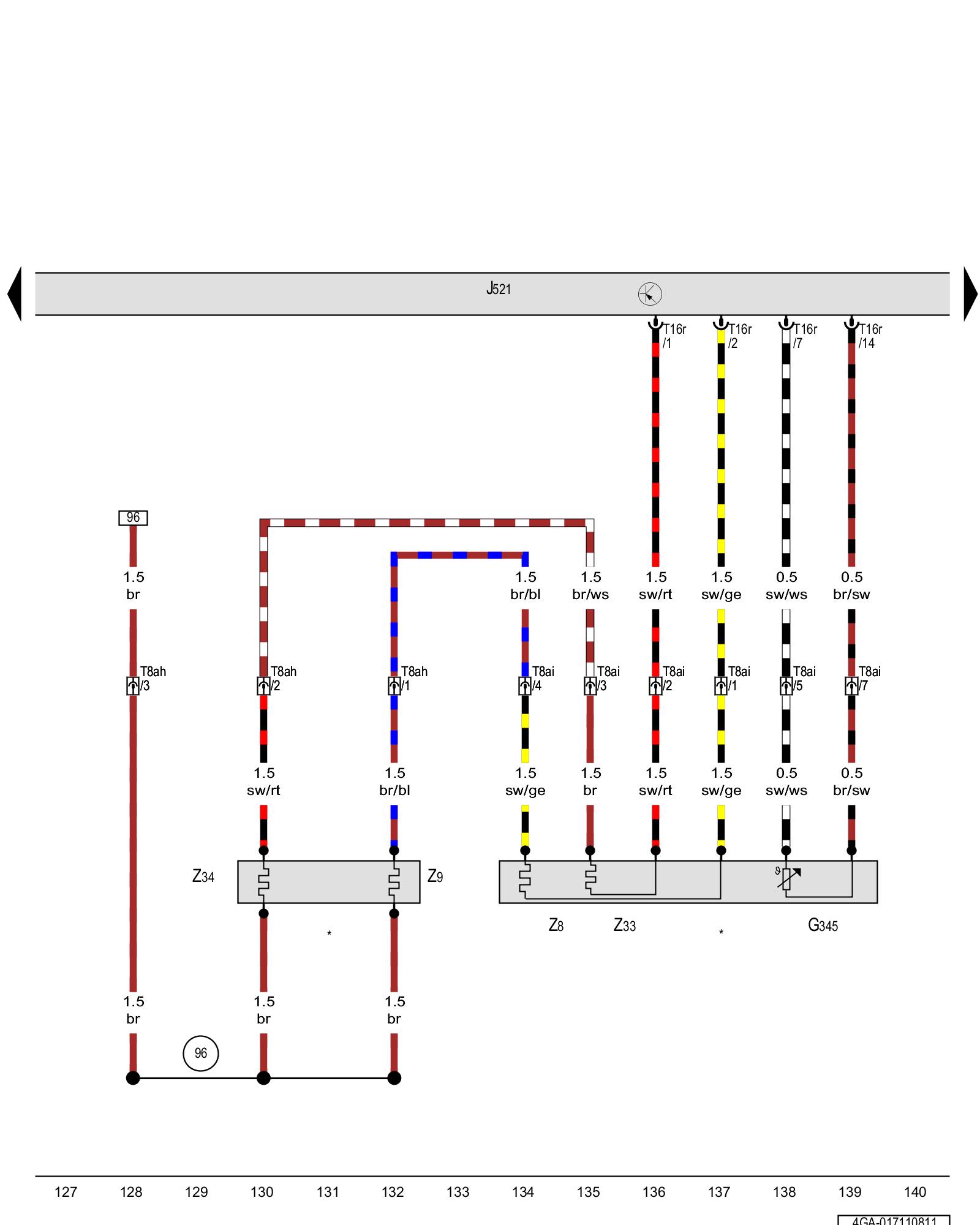

Diagram 17/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right front seat temperature sensor, Front passenger memory seat control module, Front passenger seat heating element, Front passenger backrest heating element





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G345 - Right front seat temperature sensor

J521 - Front passenger memory seat control module

T8ah - 8-pin connector, in the front passenger seat

T8ai - 8-pin connector, in the front passenger seat

T16r - 16-pin connector

Z8 - Front passenger seat heating element

Z9 - Front passenger backrest heating element

Z33 - Front passenger seat bolster heater

Z34 - Front passenger seat backrest bolster heater

(96) - Ground connection 1 (in heated seats wiring harness)

* - Only for vehicles with seat ventilation
