Disconnecting and Connecting Pneumatic Lines

Disconnecting and Connecting Pneumatic Lines

Special tools, testers and auxiliary items required

• Cutting pliers (VAS 6228)

• Pliers (VAS 6618/1)

Cutting pneumatic lines

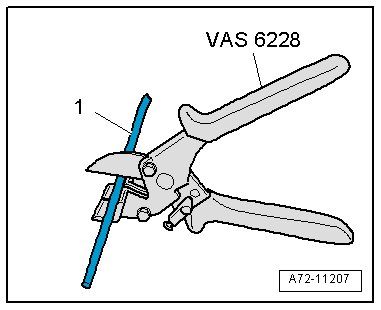

- Cut the pneumatic line - 1 - with air hose pliers (VAS 6228).

Connecting pneumatic line

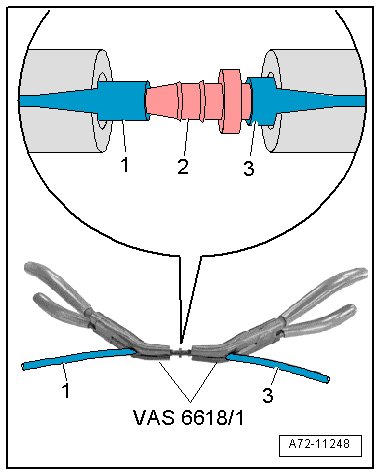

- Position thrust pneumatic lines - 1 - and - 3 - on both sides and using the pliers (VAS 6618/1) thrust them onto the line connector - 2 -.
