Rear Seat Bench Cover and Cushion Assembly Overview

Rear Seat Bench Cover and Cushion Assembly Overview

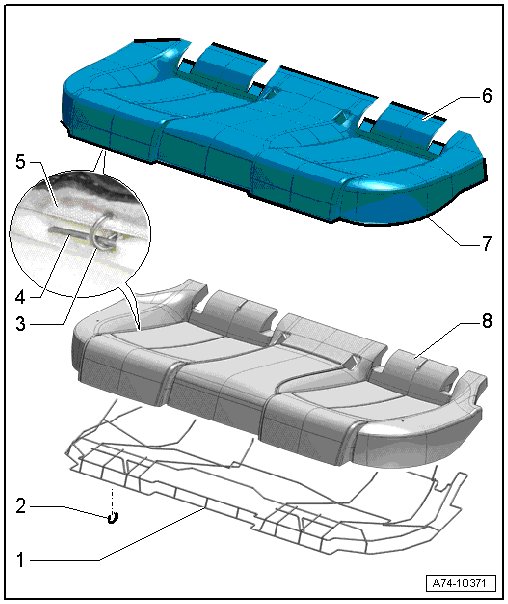

Without Center Storage






1 Seat frame

2 Cushion clip

• For attaching the seat cover to the seat frame

• Replacing

• Install at the same location with upholstery clip pliers (V.A.G 1634)

3 Cushion clip

• For attachment of seat cover to seat cushion

• Replacing

• Install at the same location with upholstery clip pliers (V.A.G 1634)

4 Wire

• Embedded in the foam of the seat cushion

• For attachment of seat cover to seat cushion

5 Contour wire

• Inserted in the pocket of the seat cover

• For attachment of seat cover to seat cushion

6 Seat cover

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Rear Seat Bench ] Seat Cover With Seat Cushion For Rear Seat Bench

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover and Seat Cushion for Rear Seat Bench, Separating and Connecting ] Seat Cover and Seat Cushion For Rear Seat Bench, Separating and Connecting

• For the correct allocation, refer to Parts Catalog

• Make sure there are no folds after installing

7 Molding

• sewn into seat cover

• For attaching the seat cover to the seat frame

• Make sure is fits correctly on the seat frame

8 Seat cushion

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Rear Seat Bench ] Seat Cover With Seat Cushion For Rear Seat Bench

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover and Seat Cushion for Rear Seat Bench, Separating and Connecting ] Seat Cover and Seat Cushion For Rear Seat Bench, Separating and Connecting

• For the correct allocation, refer to Parts Catalog

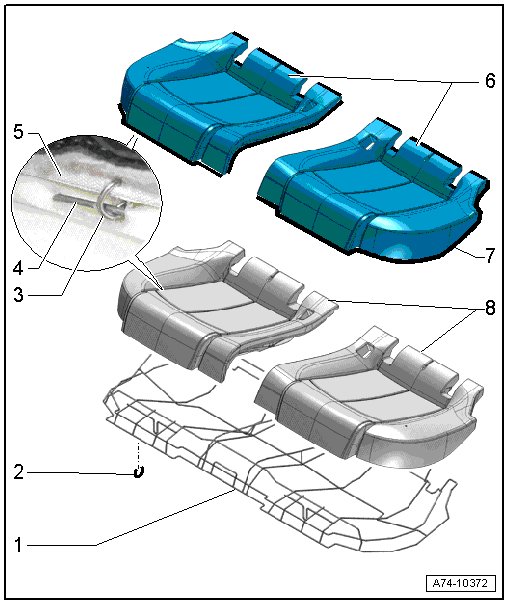

With Center Storage Compartment






1 Seat frame

2 Cushion clip

• For attaching the seat cover to the seat frame

• Replacing

• Attach back at the same location when installing

3 Cushion clip

• For attachment of seat cover to seat cushion

• Replacing

• Install at the same location with upholstery clip pliers (V.A.G 1634)

4 Wire

• Embedded in the foam of the seat cushion

• For attachment of seat cover to seat cushion

5 Contour wire

• Inserted in the pocket of the seat cover

• For attachment of seat cover to seat cushion

6 Seat cover

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Rear Seat Bench ] Seat Cover With Seat Cushion For Rear Seat Bench

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover and Seat Cushion for Rear Seat Bench, Separating and Connecting ] Seat Cover and Seat Cushion For Rear Seat Bench, Separating and Connecting

• For the correct allocation, refer to Parts Catalog

• Make sure there are no folds after installing

7 Molding

• Sewn into seat cover

• For attaching the seat cover to the seat frame

• Make sure is fits correctly on the seat frame

8 Seat cushion

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover with Seat Cushion for Rear Seat Bench ] Seat Cover With Seat Cushion For Rear Seat Bench

• Seat Cover and Cushion, Removing and Installing, refer to => [ Seat Cover and Seat Cushion for Rear Seat Bench, Separating and Connecting ] Seat Cover and Seat Cushion For Rear Seat Bench, Separating and Connecting

• For the correct allocation, refer to Parts Catalog
